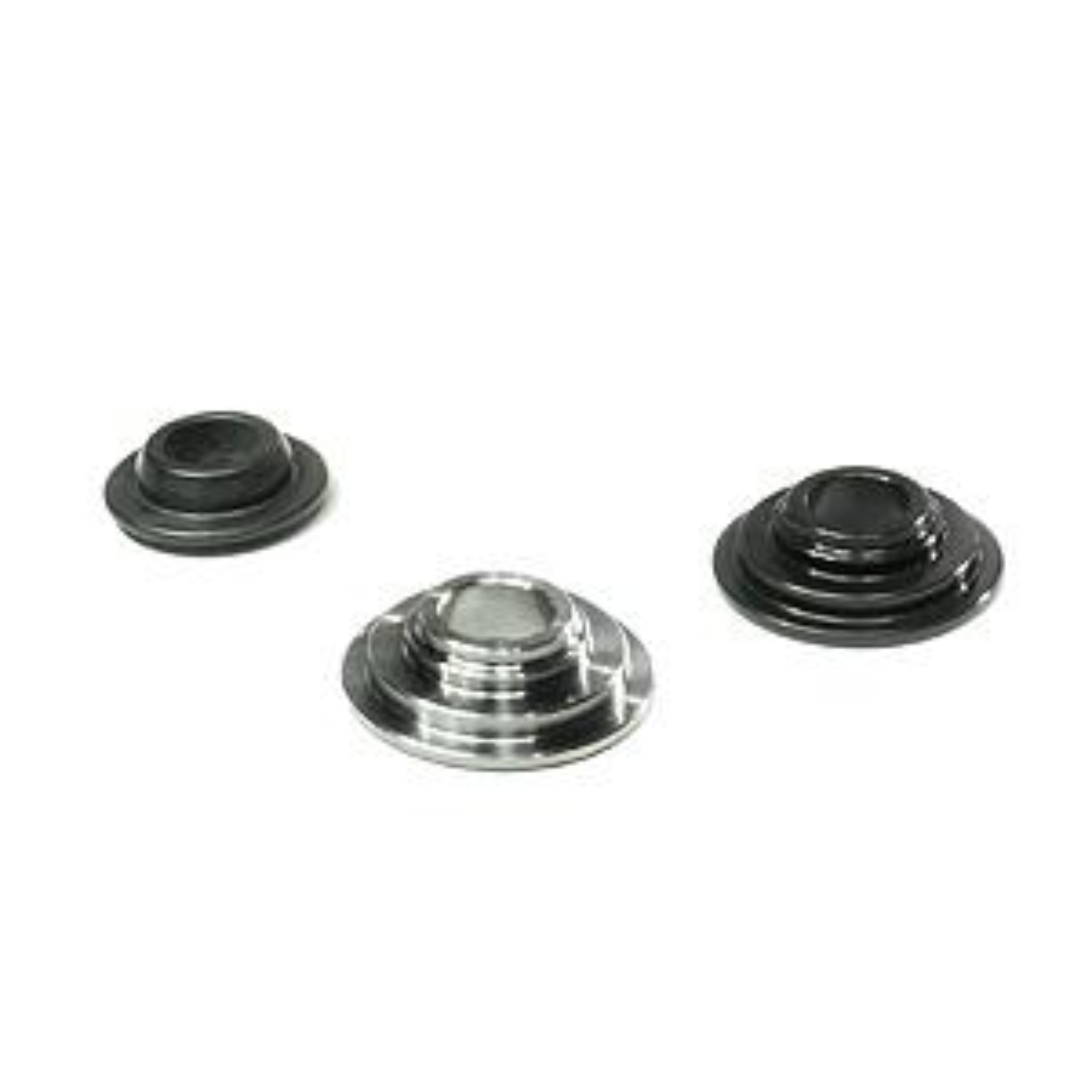

Upgrade your valve train with Manley Performance Titanium Retainers and other lightweight titanium options designed specifically for high-revving engines. Machined from aerospace-grade heat-treated 6AL-4V titanium, these retainers dramatically reduce valvetrain mass for quicker rev-up, improved valve control and enhanced overall responsiveness. The reduced weight helps your engine hold spring pressure at high RPM, minimizing float and unlocking more performance potential in race or aggressive street applications. Lightweight, strong, and precision-built for serious performance.
Height: +.060 in. - Spring Diameter: 1.020 / 1.030 in. - Valve Stem Diameter: 7mm - Weight: 5.0 grams
Ti Retainers-7mm stem diam. 7 DEG vlv lock, .875" OD, +.060" install height
CAD designed for ultimate reduction in mass without sacrificing strength
Use Manley P/N 13098 (recommended) or factory Chevrolet LT valve locks
Manley Ti 7 Deg Vlv Spring Ret. - Use w/ Spring 221427 or 221437
Manley 7 Degree +.060 Titanium Retainers - Set of 16
Sames as 23628 dimensionally except made of Titanium
Manley Spring Retainer, RET-TI 221427 SPRING +.060.
Sames as 23623 but +.055" more installed height
Special 6AL-4V titanium for maximum strength
Engine Valve Spring Retainer Set
7 Degree Ti Retainer Kits
Must use 7 valve locks
Spring Retainer
