With a .600" maximum lift, these Beehive Valve Springs were designed for hydraulic Roller cams. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.Part #ODIDSeat LoadOpen LoadCoil BindRate (Lbs./In.)Titanium RetainerSteel RetainerCup SeatShims26915Top Bottom1.0551.290.650.885105 @ 1.800293 @ 1.2001.100313762, 772, 788761, 774, 783, 787, 795, 178747054753
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

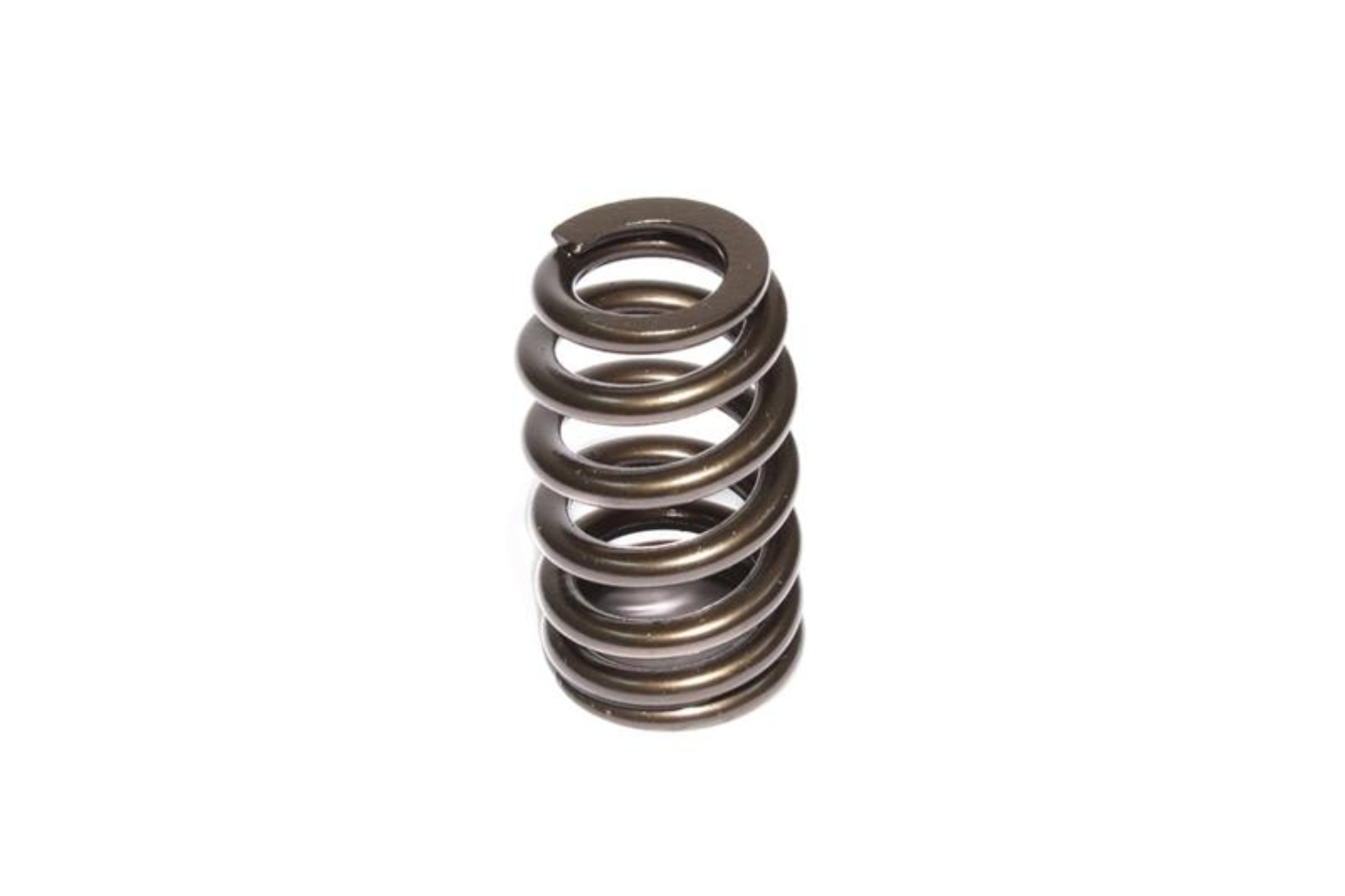

Performance Street 1.290" OD Beehive Spring, 1.800" Installed Height, 1 Spring
Performance Street 1.290" OD Beehive Spring; 1.800" Installed Height; 1 Spring
Beehive Valve Spring: Top 1.055" OD, .650" ID
Perf St 1.290" Beehive 1.800" Inst Ht
COMP Cams Valve Spring Performance GM
VALVE SPRING,1.290"PERFORMANCE GM LS1
Bottom 1.290" OD, .885" ID
