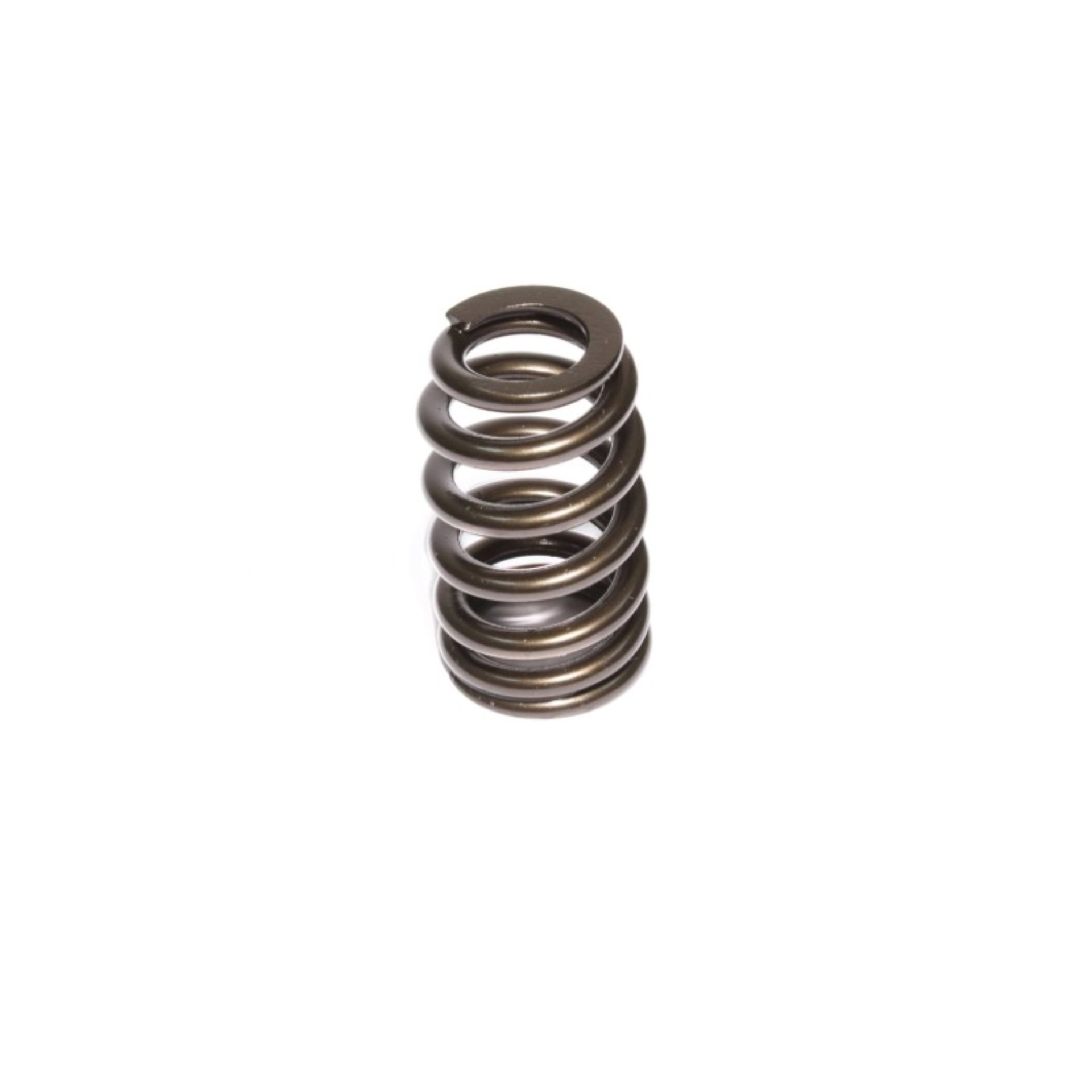

VALVE SPRING, 1.415" BEEHIVE

With a .575" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in a variety of small block engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles. Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims 26986 Top Bottom 1.0651.415 .6501.000 109 @ 1.800 284 @ 1.175 1.060 280 788 1787, 787, 795 4696 4755

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Performance Street 1.415" OD Beehive Spring, 1.700" Installed Height, 1 Spring

Performance Street 1.415" OD Beehive Spring; 1.700" Installed Height; 1 Spring

Bottom 1.415" OD, 1.000" ID, 284 @ 1.175 Open Load - Single

Beehive Valve Spring: Top 1.065" OD, .650" ID

COMP Cams Valve Spring 1.415in Beehive

Perf St 1.415" Beehive 1.700" Inst Ht

VALVE SPRING, 1.415" BEEHIVE

Engine Valve Spring

None
