With a .600" maximum lift, these Beehive Valve Springs were designed for hydraulic Roller cams. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles. Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims 26915 Top Bottom 1.0551.290 .650.885 105 @ 1.800 293 @ 1.200 1.100 313 762, 772, 788 761, 774, 783, 787, 795, 1787 4705 4753
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
With a .600" maximum lift, these Beehive Valve Springs were designed for hydraulic Roller cams.

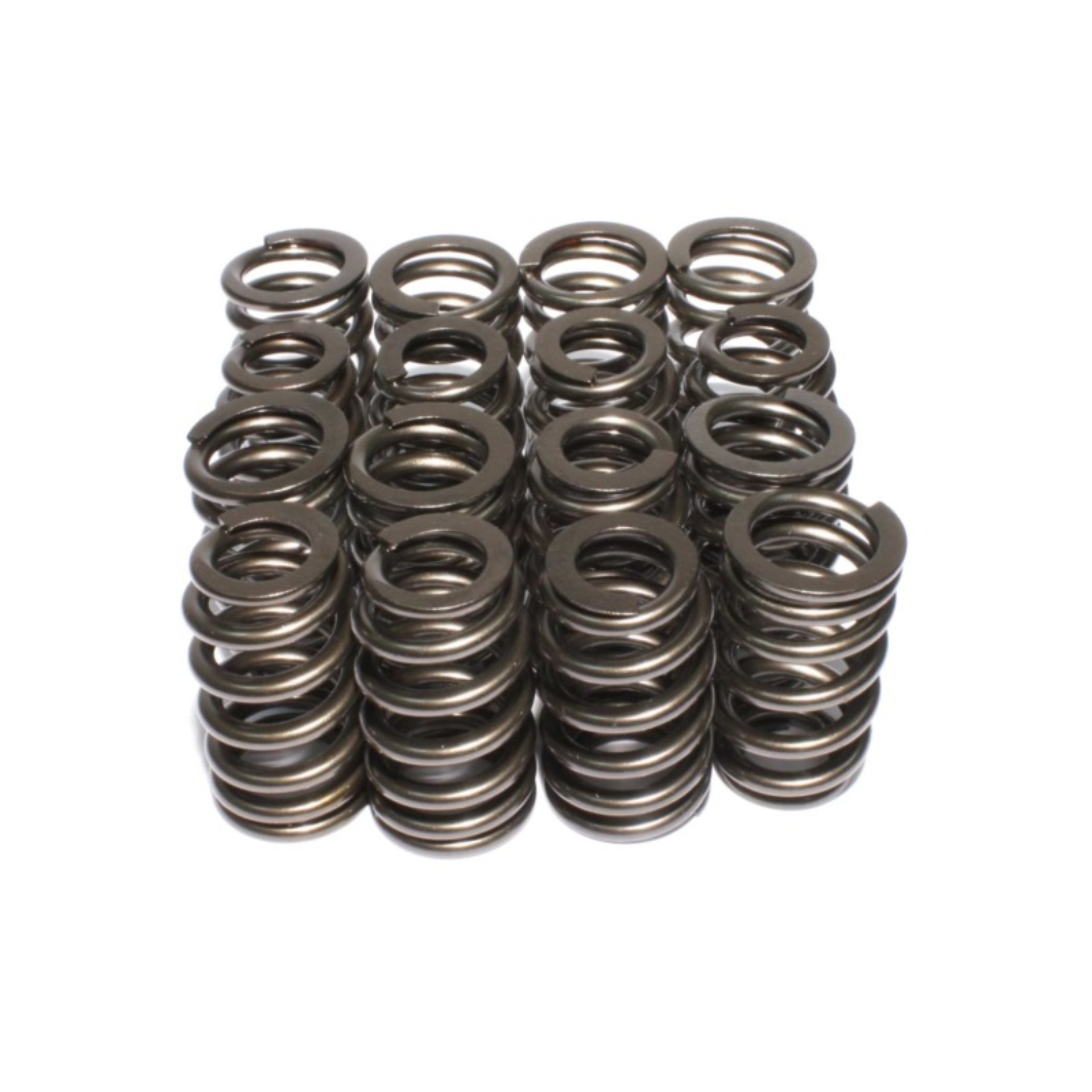

Performance Street 1.290" OD Beehive Spring, 1.800" Installed Height, 16 Springs
Performance Street 1.290" OD Beehive Spring; 1.800" Installed Height; 16 Springs
Perf Street 1.290" Springs 1.80" Inst Ht
VALVE SPRINGS,1.290" PERFORMAN CE GM LS1
COMP Cams Valve Springs Performance GM
Engine Valve Spring Kit
Engine Valve Spring
