COMP Cams' 26097 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing, they redefine reliability and consistency in the performance automotive aftermarket. This spring utilizes a progressive pitch coiling process that greatly improves durability and ensures safe spring life beyond traditional extreme-duty applications. The 26097 is purposed for endurance solid roller applications, with up to .800” lift at an installed height of 2.000”. They fit cylinder heads with at least a 1.549" spring pocket. Boasting an open load of over 600 pounds, these valve springs are designed for endurance applications and optimized with newer lobe profiles in mind to achieve higher RPM and higher lift. It is similar to the new 26953 but includes more seat load and installed height for applications where the 26953 is too short. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs.
Designed for endurance-race-oriented solid roller cams, 26097 fits applications near a 2.000" installed height and a spring pocket of 1.549". It has a 500 lbs/in rate and over 600 lbs open load for increased RPM and improved dynamics.
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

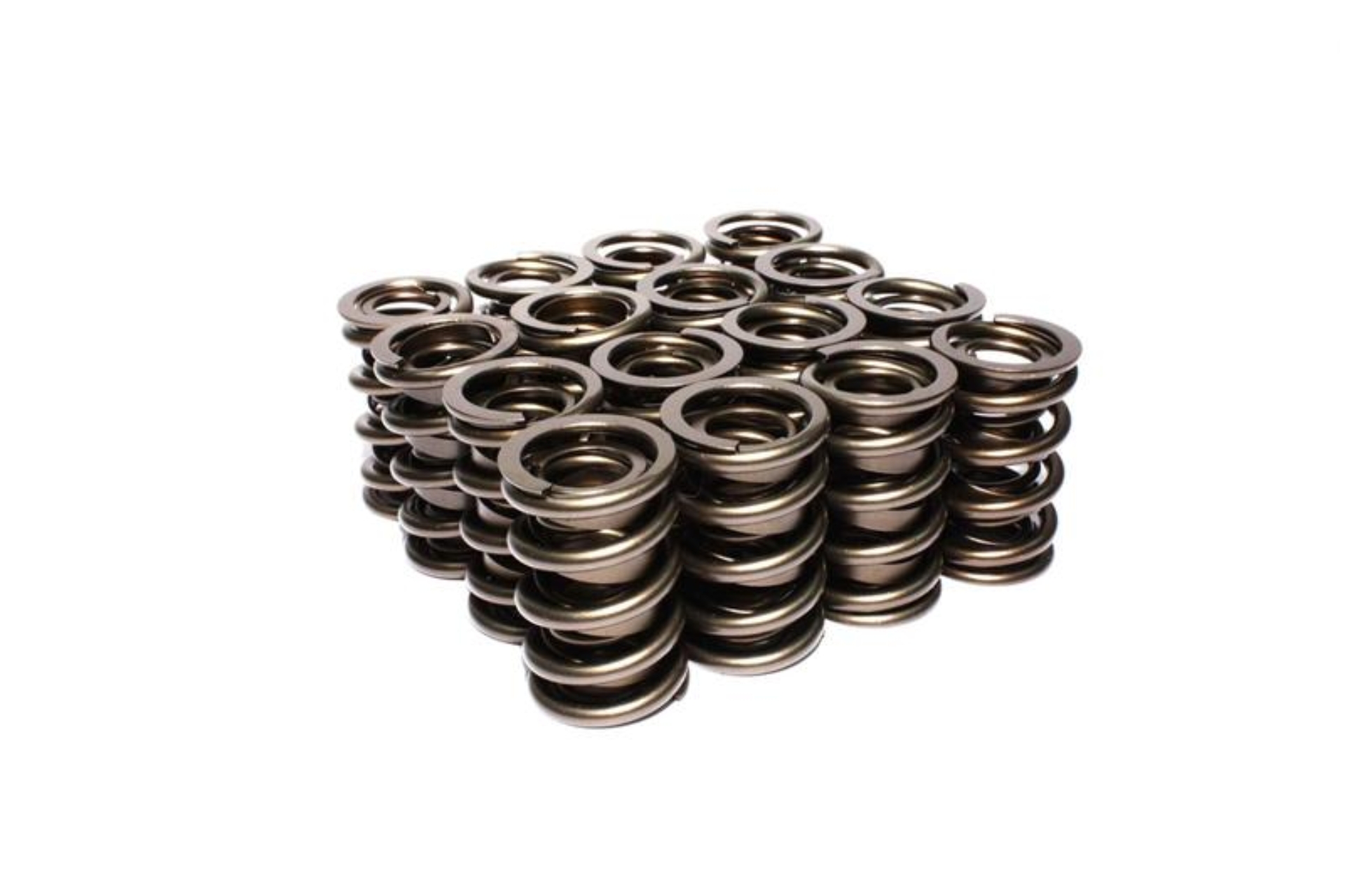

Race Endurance 1.551" OD Dual Springs; 2.000" Installed Height; 16 Springs
SET, DUAL SPRING W/ DAMPER, 1.551 OD, 2.000 IH, .800 LIFT, 502 LBS/IN, SR
DUAL SPRING W/ DAMPER, 1.549 OD, 2.000 IH, .800 LIFT, 500 LBS/IN
COMP Cams Valve Springs 1.539in Dual W/D
Race End 1.551" Dual Springs 2" Inst Ht
26097-16 DUAL SPRING W/ DAMPER,
Engine Valve Spring Kit
Engine Valve Spring
