With a .580" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They are great for Pontiac, Oldsmobile and Small Block Chrysler or other Applications that require shorter Installation height. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.Part #ODIDSeat LoadOpen LoadCoil BindRate (Lbs./In.)Titanium RetainerSteel RetainerCup SeatShims26995Top Bottom1.0651.415.6501.000137 @ 1.700305 @ 1.1001.0602807881787, 787, 79546964755
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

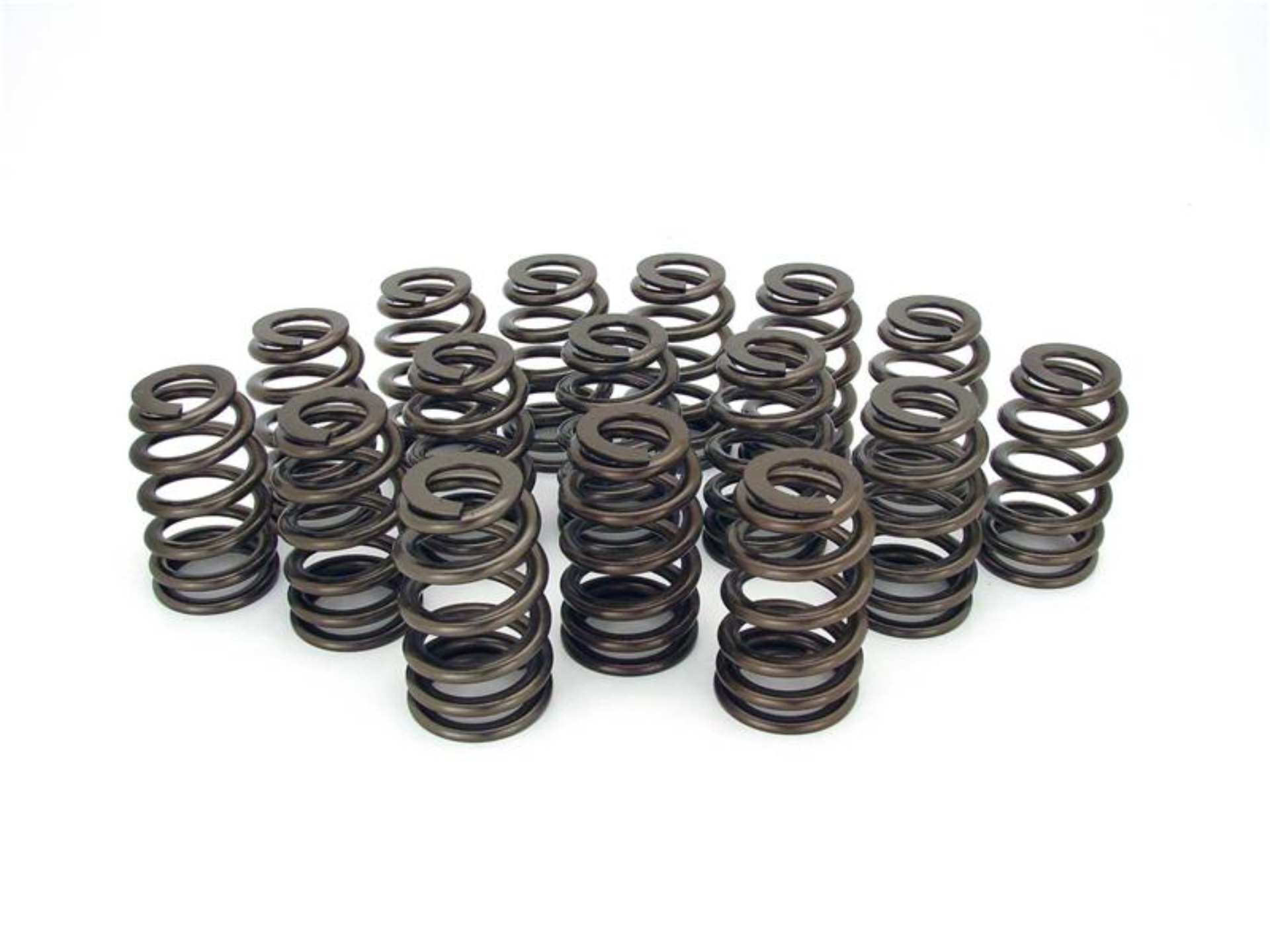

Performance Street 1.415" OD Beehive Spring, 1.700" Installed Height, 16 Springs
Performance Street 1.415" OD Beehive Spring; 1.700" Installed Height; 16 Springs
Bottom 1.415" OD, 1.000" ID, 305 @ 1.100 - Set of 16
Beehive Valve Spring: Top 1.065" OD, .650" ID
Perf Street 1.415" Springs 1.70" Inst Ht
COMP Cams Valve Springs 1.415in Beehive
VALVE SPRINGS, 1.415" BEEHIVE
Engine Valve Spring Kit
Engine Valve Spring
