With a .525" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles. Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims 26981 Top Bottom 1.0651.240 .650.825 110 @ 1.700 292 @ 1.175 1.115 347 788 1787, 787, 795 4693 4753
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Performance Street 1.240" OD Beehive Spring, 1.700" Installed Height, 8 Springs
Performance Street 1.240" OD Beehive Spring; 1.700" Installed Height; 8 Springs
Beehive Valve Springs: Top 1.065" OD, .650" ID
Perf Street 1.240" Springs 1.70" Inst Ht
COMP Cams Valve Springs 1.240in Beehive

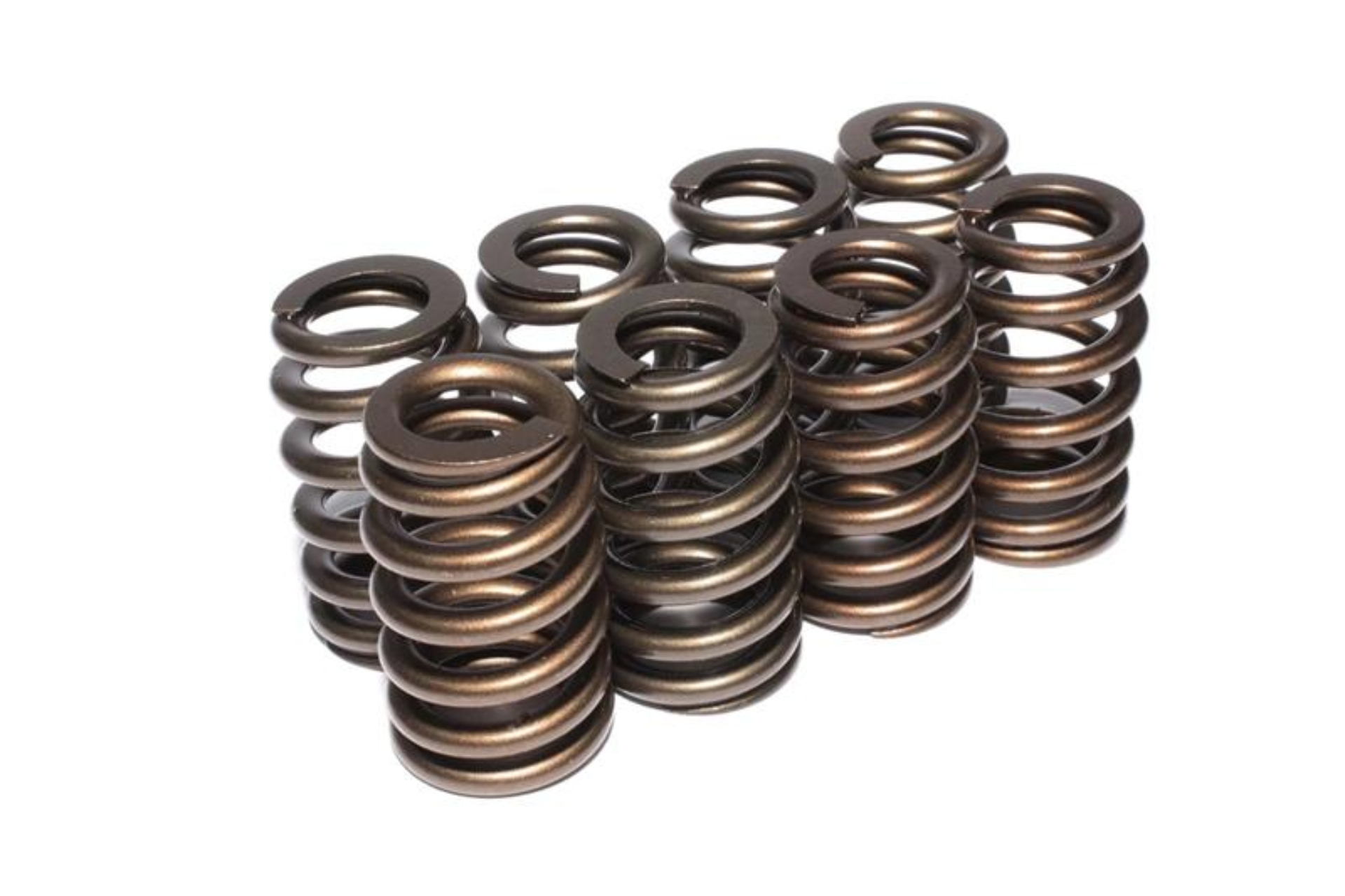

VALVE SPRINGS, 1.240" BEEHIVE
Bottom 1.240" OD, .825" ID
Engine Valve Spring Kit
VALVE SPRINGS, 1.240
