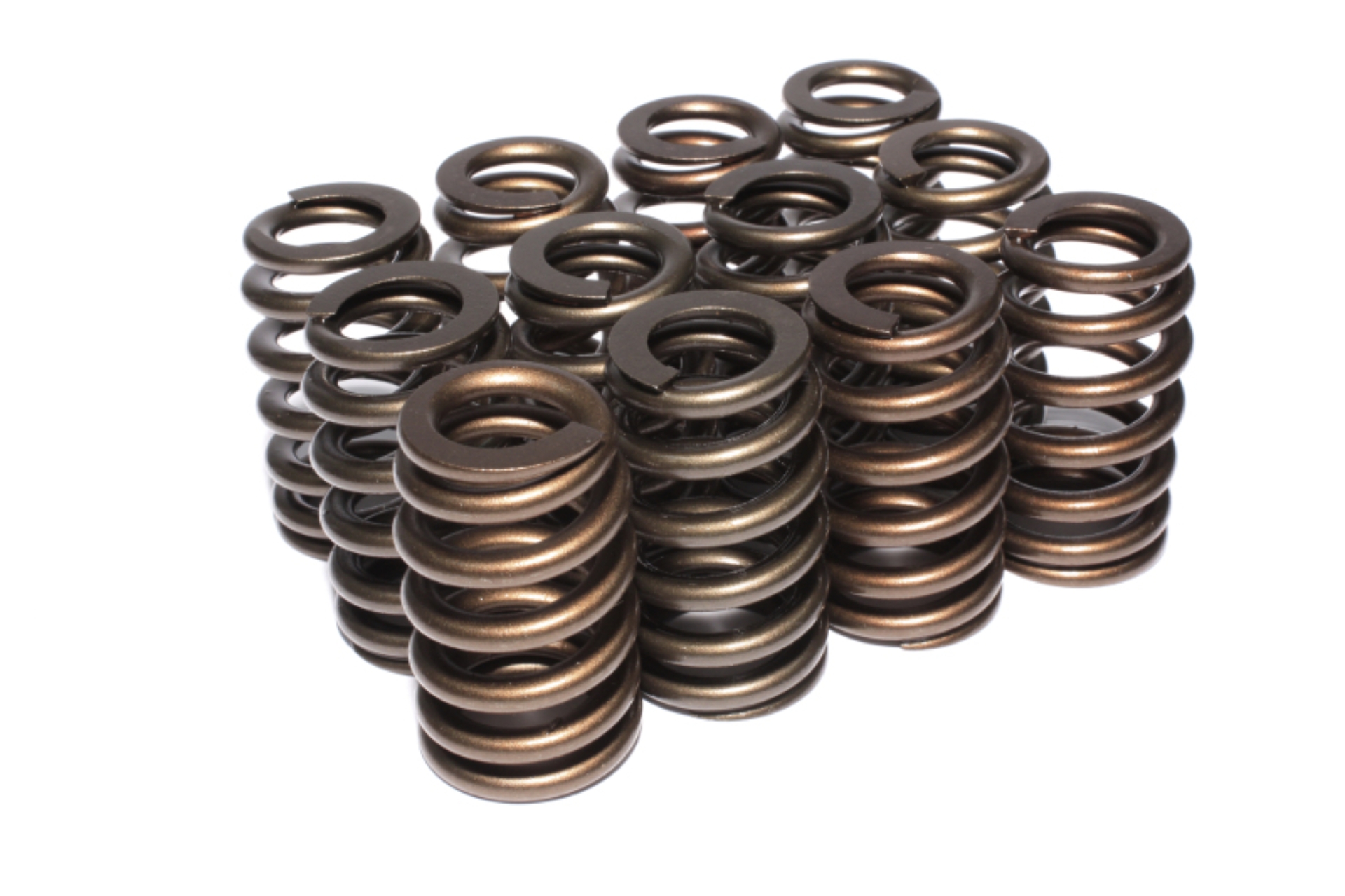

VALVE SPRINGS, 1.240" BEEHIVE

With a .525" maximum lift, these Beehiveâ„¢ Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams Beehiveâ„¢ Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehiveâ„¢ shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehiveâ„¢ design, the valve train can handle more RPM and more aggressive Camshaft profiles.Part #ODIDSeat LoadOpen LoadCoil BindRate (Lbs./In.)Titanium RetainerSteel RetainerCup SeatShims26981Top Bottom1.0651.240.650.825110 @ 1.700292 @ 1.1751.1153477881787, 787, 79546934753

Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit

Performance Street 1.240" OD Beehive Spring, 1.700" Installed Height, 12 Springs

Performance Street 1.240" OD Beehive Spring; 1.700" Installed Height; 12 Springs

Beehive Valve Spring: Top 1.065" OD, .650" ID

Perf Street 1.240" Springs 1.70" Inst Ht

COMP Cams Valve Springs 1.240in Beehive

VALVE SPRINGS, 1.240" BEEHIVE

Bottom 1.240" OD, .825" ID

Engine Valve Spring Kit

VALVE SPRINGS, 1.240

None
