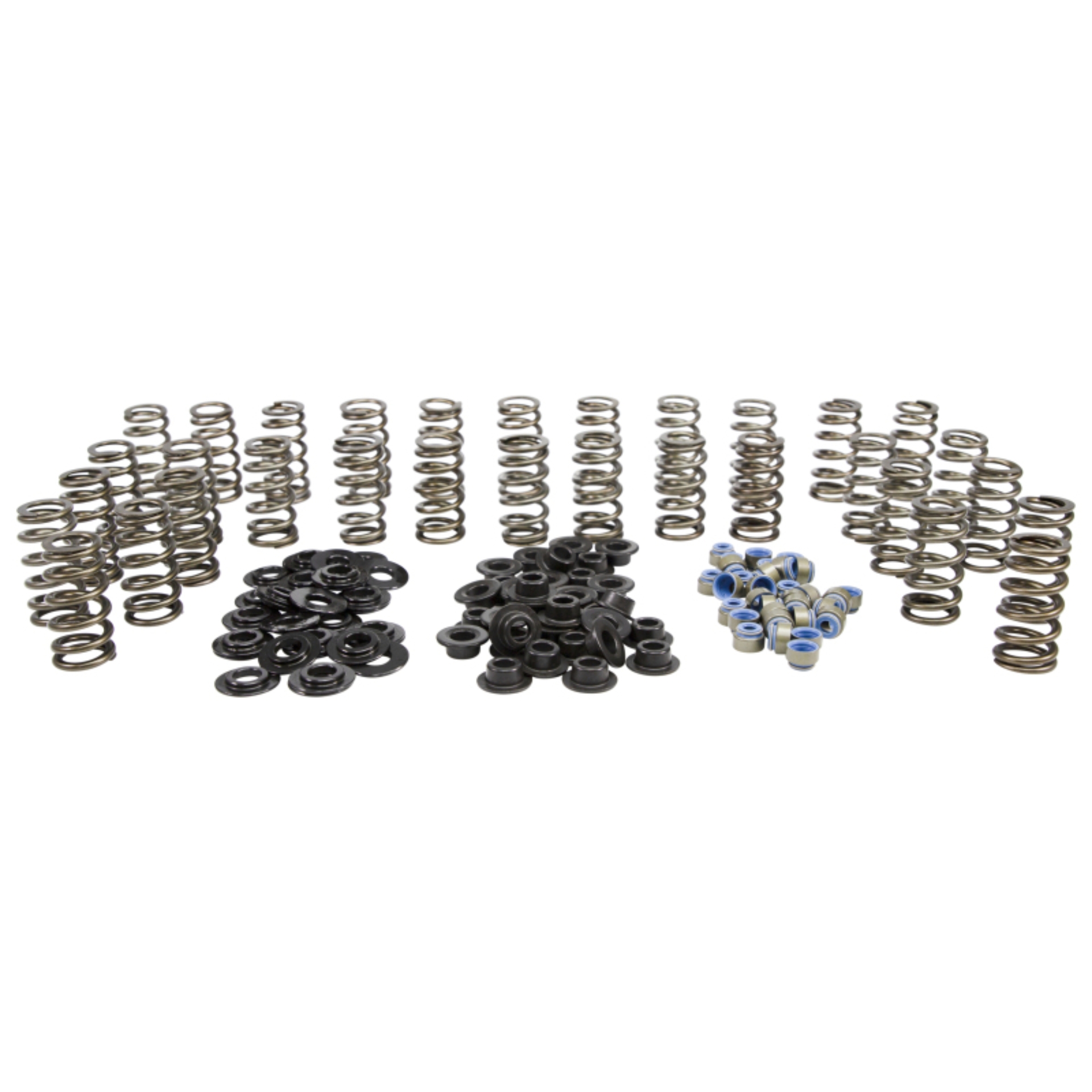

The .585” Lift COMP Cams Beehive Valve Spring Kits for GM 6.6L Duramax Diesel Engines include everything needed to upgrade from stock springs: Beehive Valve Springs, steel retainers, spring seats and valve seals. Beehive Valve Springs feature a reduced diameter at the top of the spring to allow the use of a smaller and lighter retainer, reducing overall valve train weight. The lighter valve train combined with the stronger spring allows the engine to rev higher without concerns of valve float while an increased spring rate maintains valve train stability at elevated RPM to allow the use of more aggressive camshafts. The unique ovate Beehive shape not only has higher load but is more dynamically stable than the factory spring, ensuring valve train stability at elevated RPM and boost pressures.
Able to support .585" valve lift, this Beehive Spring Kit for '01-'05 Duramax Diesels includes springs, retainers, seats and seals for an easy drop-in upgrade. Thanks to a unique Ovate Beehive design, this kit handles higher RPM and boost.
COMP Cams Valve Spring Kit 0.585in Lift Beehive 01-05 GM 6.6L Duramax Diesel (LB7/LLY)
.585" Lift Beehive Spring Kit for '01-'05 GM 6.6L Duramax Diesel
Duramax; 6.6 Duramax; 6.6L Duramax; GM Duramax; Turbo Diesel
VALVE SPRING KIT, 2001-2005 6. 6L GM DURAMAX
.585" Spring Kit '01-'05 GM 6.6 Duramax
2001-2005 GM 6.6L Duramax Diesel
See 26125BCS-KIT for '06-'16
Engine Valve Spring Kit
Sprng 01-05 6.6 Drmx
