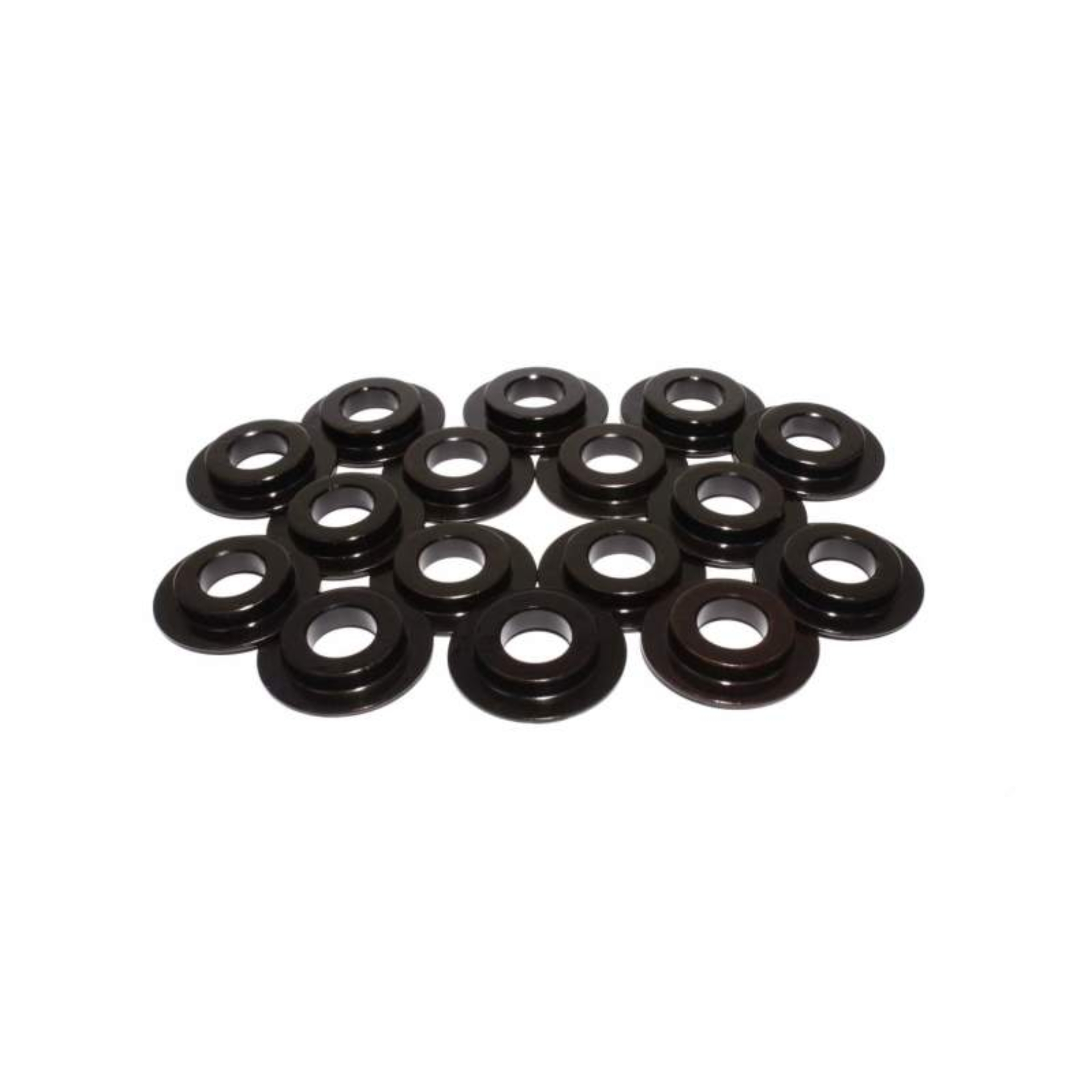

SPRING SEATS, .045 X .505 X .875 X 1.300

Complete Set of (16) ID Spring Locators. The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem - a thin, hardened Steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers ID locators with the locating shoulder on the inside. Many sizes are available to locate from the inside or outside diameter. Properly Locates Springs with Stock Size GM LS .500" Valve Guides. Designed for COMP Beehive and Conical Valve Springs. OD ID Thickness Spring ID 1.300" .505" .040" .910"

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4680 seat's 1.300" OD works well with our 7228 and 7230 conical springs in LS applications.

ID Spring Locator Set of 16 - 1.300" OD, .505" ID, .040" Thickness

SPRING SEATS, .045 X .505 X .875 X 1.300

COMP Cams Spring Seats .045 X .520 X .8

Locators 1.300" OD .505" .040" Thick

Engine Valve Spring Seat

EngValve Spring Seat
