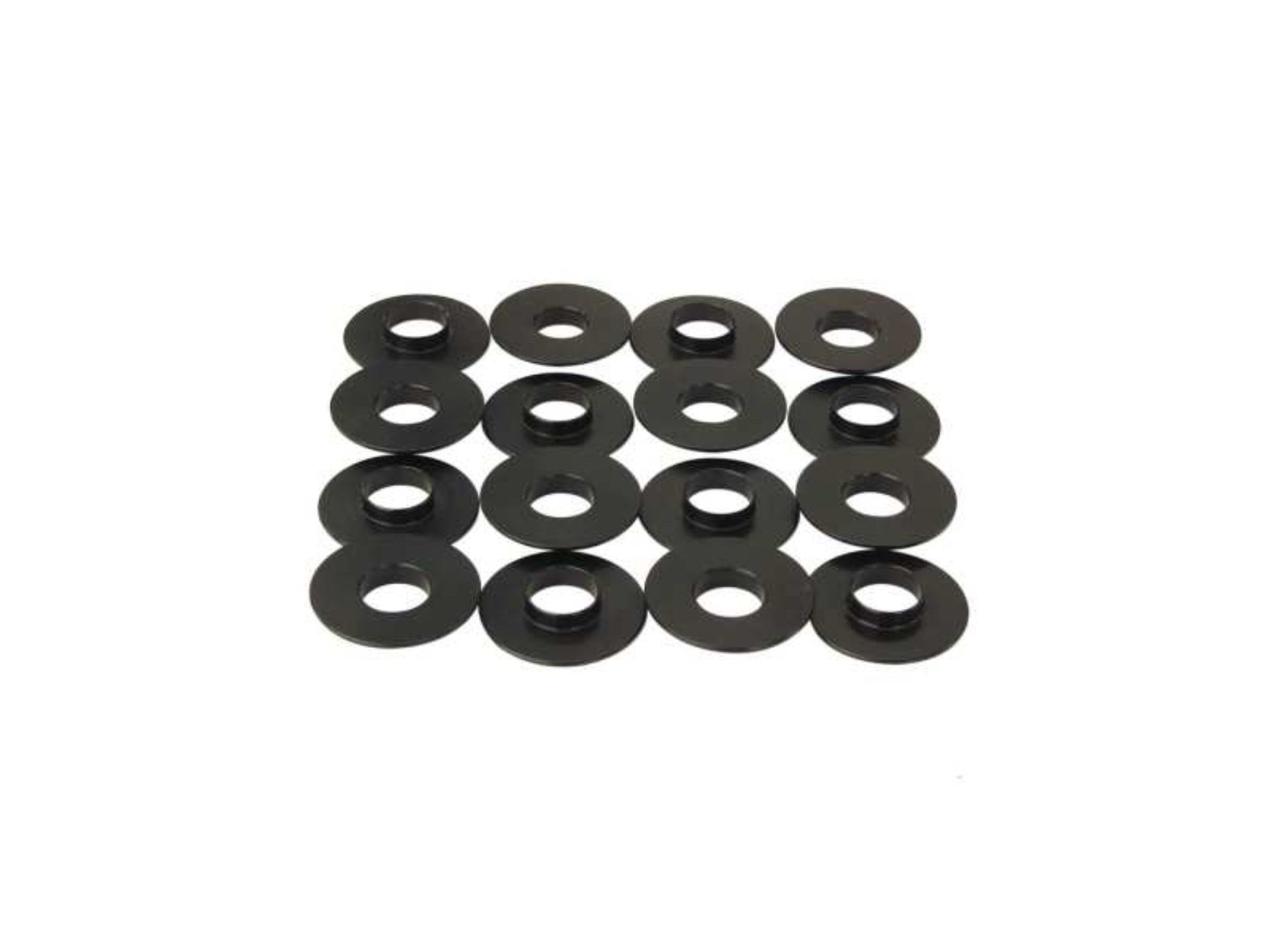

ID SPRING SEATS, 1.55 X .630 X .690

The old standard shims will not hold up to the extreme spring pressures and high RPM in today's race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup.

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4783 features a 1.540" OD and a .640" ID that works well with our 924, 925 and 939 dual valve springs.

ID Spring Locator Set of 16 - 1.540" OD, .640" ID, .060" Thickness

ID Locators 1.54" OD .640" ID .060 Thick

COMP Cams ID Spring Seats 1.55 X 630 X

ID SPRING SEATS, 1.55 X .630 X .690

Engine Valve Spring Seat

EngValve Spring Seat
