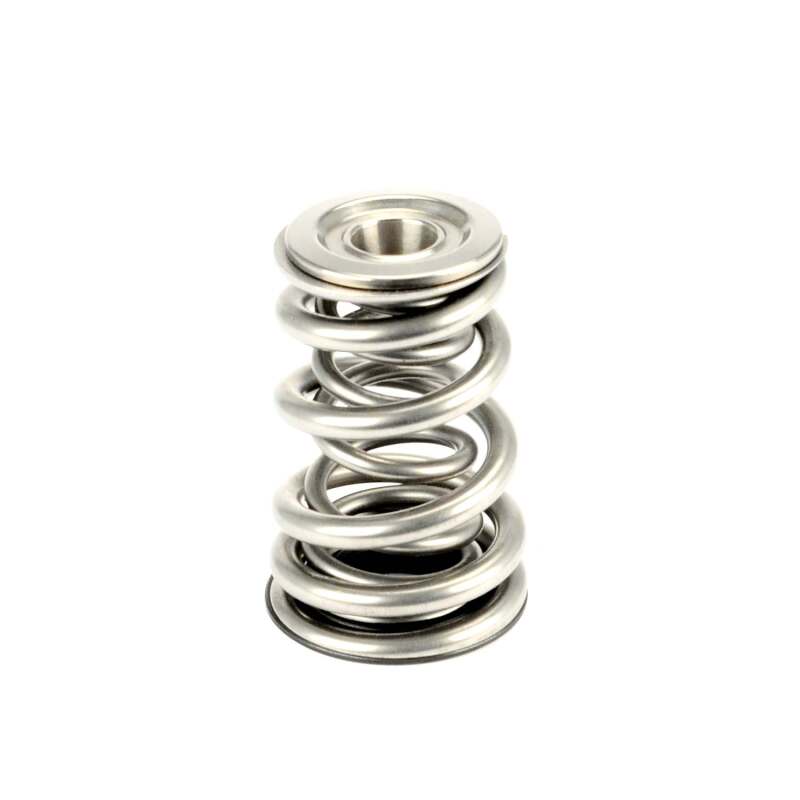

Dual Conical Valve Springs. As opposed to dual cylindrical spring systems, COMP Cams Dual Conical Valve Springs require no interference fit to dampen spring surge. The self damping characteristic of conical geometry, along with the lower spring kinetic energy of the upper coils, provide a game-changing breakthrough in valve spring design. COMP Cams Dual Conical Valve Springs are constrained at the top and bottom with stepped retainers and spring seats to create separation. The result is that the springs naturally progressive nature can provide outstanding damping without rubbing friction or the associated heat and surface damage. These springs are designed for circle track, road Race and drag racing Applications, as well as all-out, high-RPM street/strip hydraulic Roller valve train systems with optimized lifters. Dampen coil oscillations, increase RPM limit and reduce resonance Improves valve train stability Fewer parasitic horsepower losses and more power Superfinish surface processing Non-interference fit The reduced oscillation in the Dual Conical Springs translates to less applied force and stress to the springs. This increases the lifespan of the spring and the valve train. It also allows the use of more aggressive Camshaft profiles. Seat Load Open Load Coil Bind Rate OD ID Retainers Seats Shims 150lbs @ 2.00" 630lbs @ 1.20" 1.115" 600lb/in 1.442" .646" 716-1, 1738-1 4668-1, 4669-1 4756 1.657" .861"
Valve Springs; Dual Valve Springs; Single Valve Springs; Beehive Springs; Conical Springs; Valve Lift; Max Lift; Spring Kit
Race Endurance 1.657" OD Conical Spring, 2.000" Installed Height, 1 Spring
Race Endurance 1.657" OD Conical Spring; 2.000" Installed Height; 1 Spring
Comp Cams Conical Valvespring, 1.657In D,565Lb R
Available in a set of 16 under 7245-16
CONICAL VALVESPRING, 1.657" D,565LB R
Race Endur 1.657" Conical 2" Inst Ht
(1) Dual Conical Valve Spring
Engine Valve Spring
