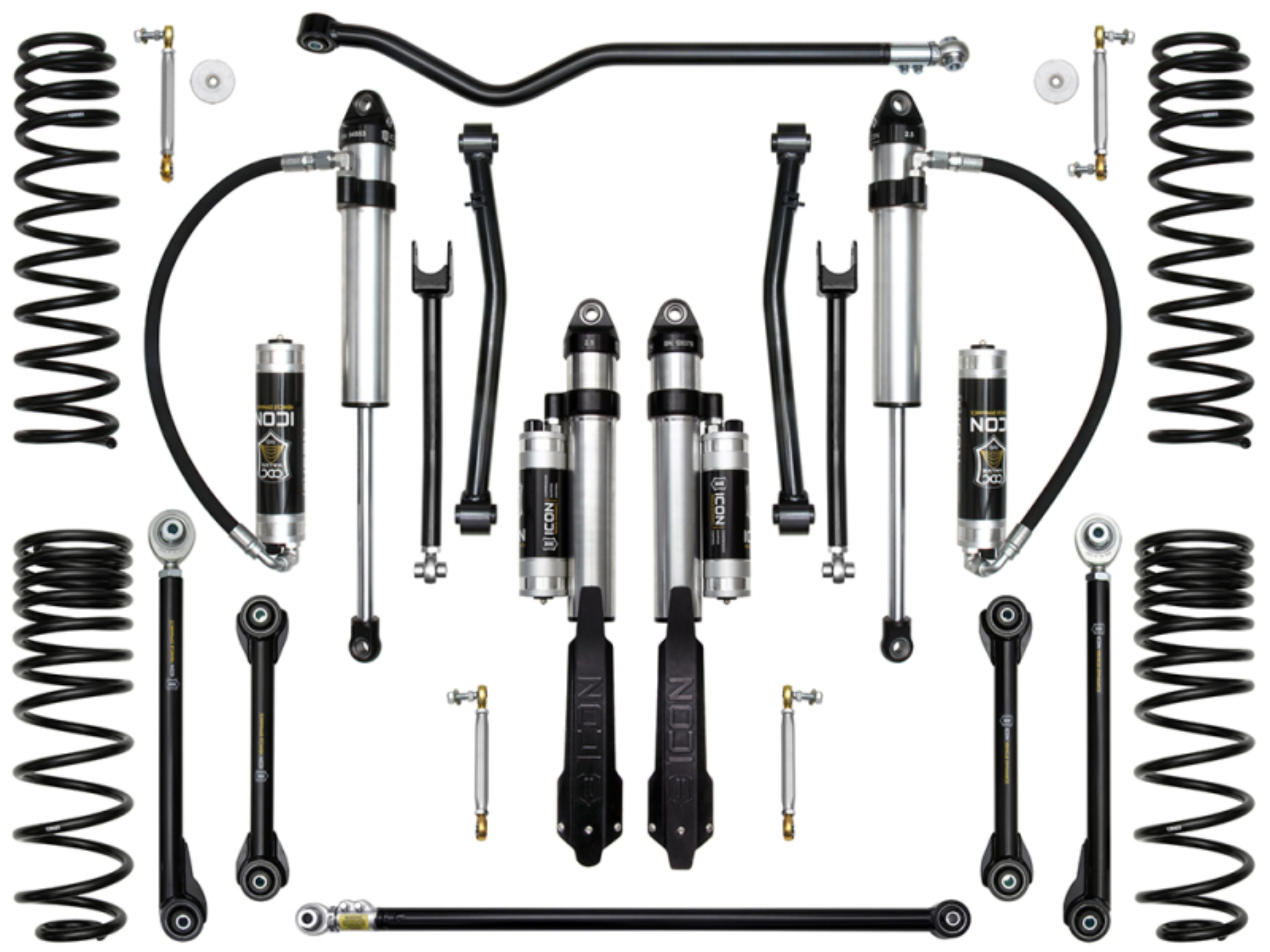

The Stage 8 ICON 2.5” Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks with CDC Valve technology, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
Front upper and lower links included for caster angle correction and improved front end articulation
APPLICATION NOTE #128: GLADIATOR MOJAVE TRIM REQUIRES 14MM MISALIGNMENT SPACER KIT PART # 611070
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine.
Dual rate front coil springs with lifetime guarantee against sagging/breakage
Front and rear track bars ensure proper alignment and improved articulation
2020-UP JEEP GLADIATOR JT 2.5" STAGE 8 SUSPENSION SYSTEM WITH TUBULAR LINKS
20-UP JEEP GLADIATOR 2.5" STAGE 8 SUSPENSION SYSTEM (TUBULAR)
Fits 35" tires (37" with extended bump stop spacer kit)
APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
Adjustable, billet aluminum front sway bar links
Improves on and off-road ride quality over stock
100% bolt-on system makes for an easy install
33% front, 23% rear increase in wheel travel
20-UP JT 2.5" STAGE 8 SUSP SYS TUBULAR
OEM Wheels & Tires Fitment: Yes
Ships In Multiple Boxes
Suspension Lift Kit
SUSPENSION SYSTEM
2.5" lift height
