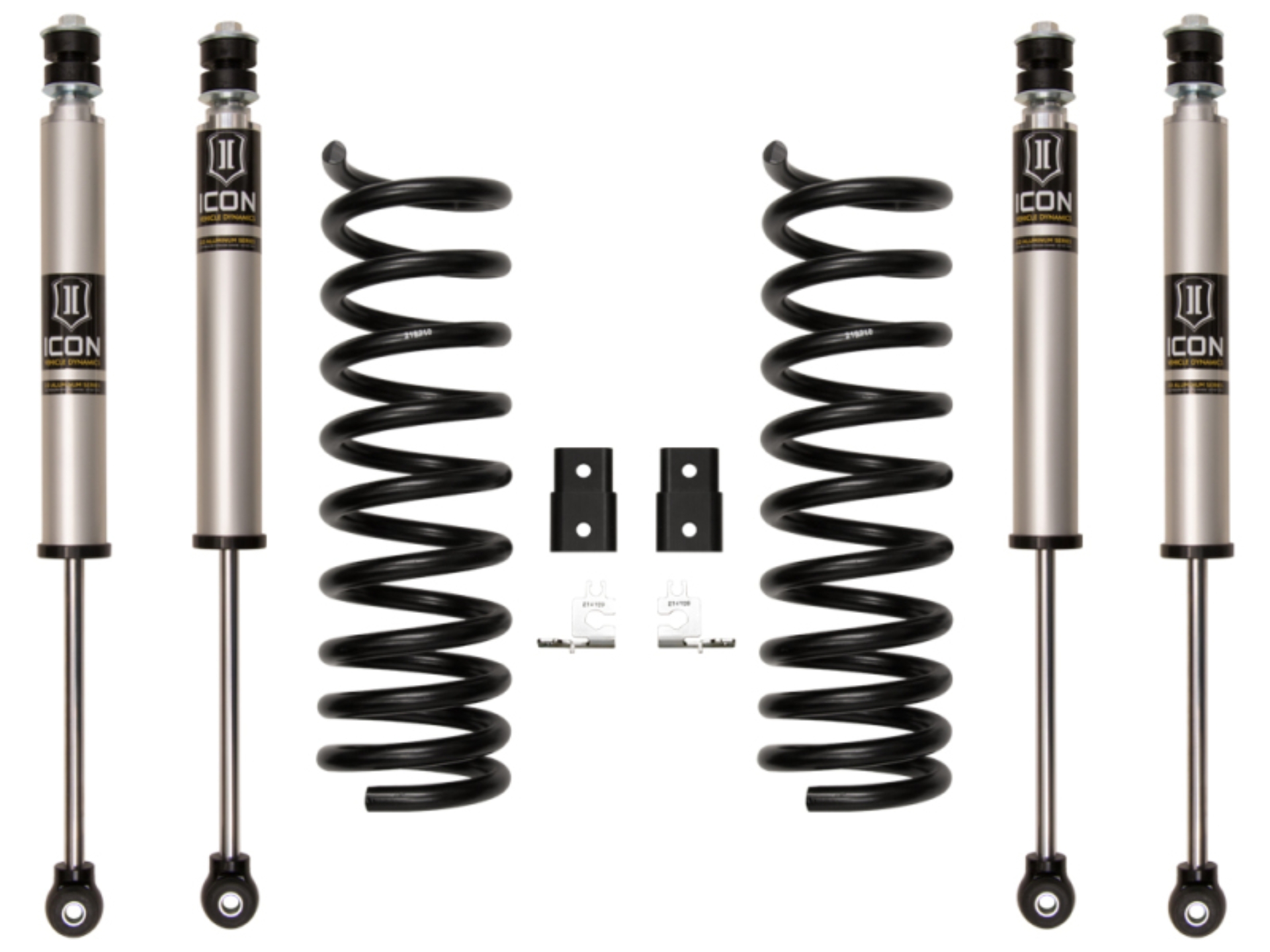

ICON's 2014 RAM 2500 4WD 2.5” Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, as well as 2.0 Aluminum Series front and rear shocks. This entry level system increases ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
Increased wheel travel and ride quality over stock with no change in towing capacity
ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
2014-UP RAM 2500 4WD 2.5" LIFT STAGE 1 SUSPENSION SYSTEM
14-UP RAM 2500 4WD 2.5" STAGE 1 SUSPENSION SYSTEM
14-UP RAM 2500 4WD 2.5" STAGE 1 SUSP SYS
No drive shaft modifications needed
OEM Wheels & Tires Fitment: Yes
Less body roll than stock
Ships in Multiple Boxes
Suspension Lift Kit
SUSPENSION SYSTEM
