COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energyâ„¢ and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Techâ„¢ Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Designed for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area. Base Thread Part # Description Diameter Length Stud Diameter Effective Stud Length 4554-16 Hi-Tech Race Rocker Stud GM Gen III/LS1/LS2/LS6 8mm .800" 3/8" 1.500"
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Designed specifically for GM GEN III LS1,2 and 6, this rocker stud set features an 8mm base thread and a 3/8" rocker thread with a 1.500" effective stud length. Comes with our 16755-KIT and 16765-Kit kits.

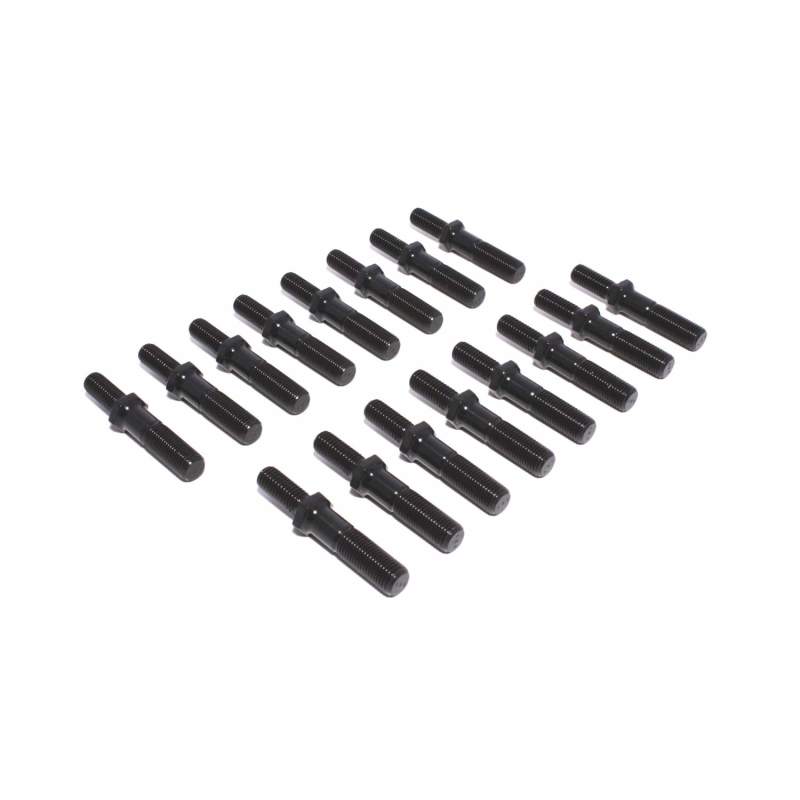

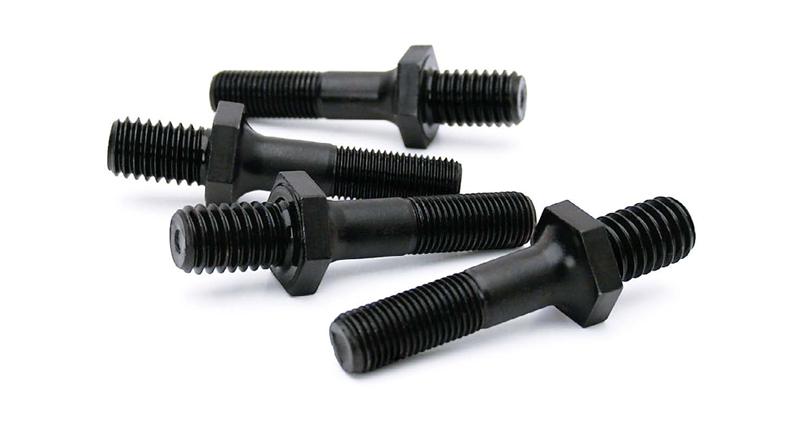

X COMP CAMS HI-TECH GM GEN III/LS1/LS2/LS6 ROCKER ARM STUD SET OF 16, 3/8 STUD D
Hi-Tech Rocker Stud Set for LS1,2,6 w/ 8mm Base Thread and 3/8" Rocker Thread
Studs LS1,2,6 8mm,3/8" Rocker Thread
COMP Cams Studs GM LS1 3/8 Rocker
Engine Rocker Arm Stud
Eng Rocker Arm Stud
