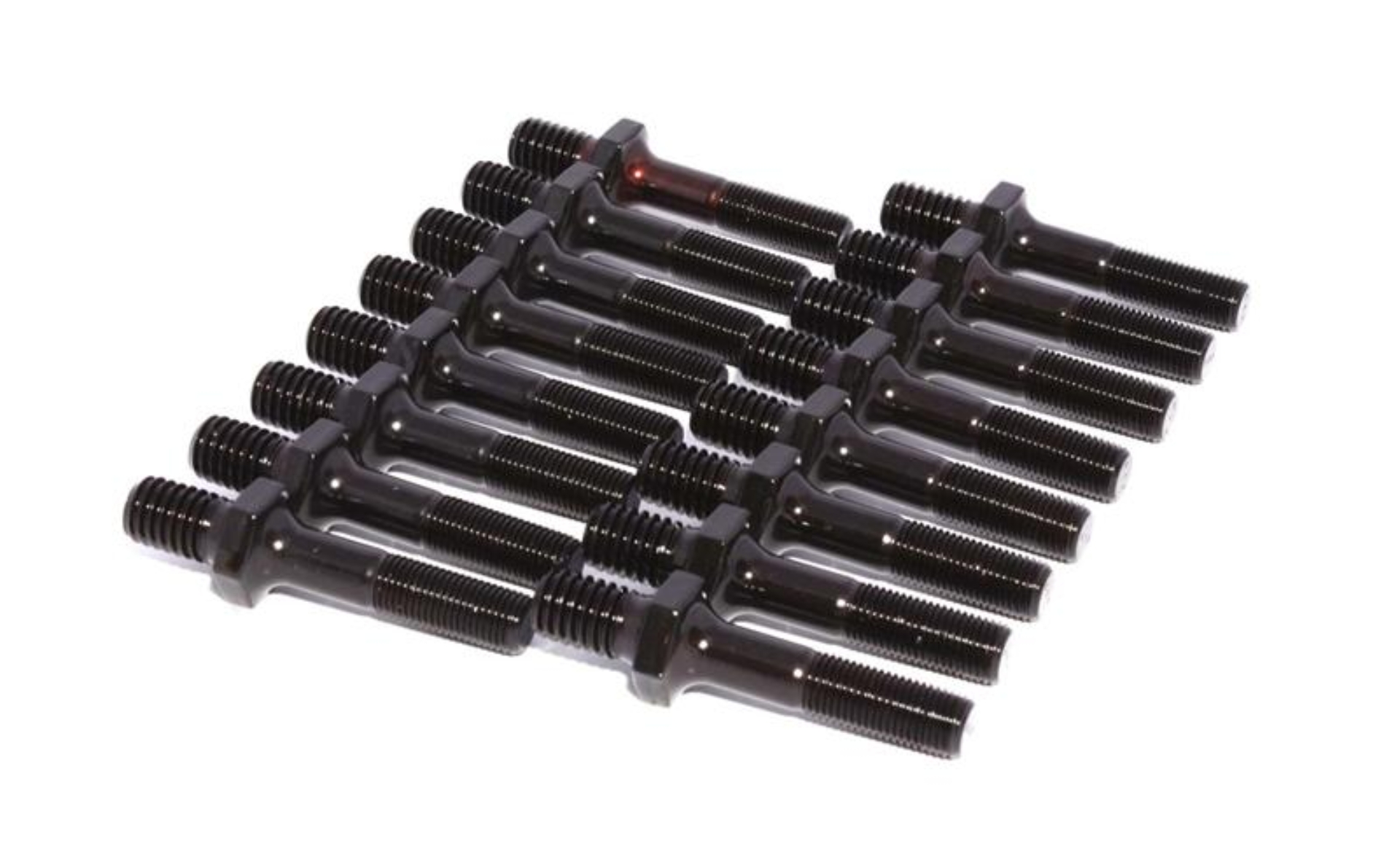

COMP CAMS HI-TECH ROCKER ARM STUD SET OF 16, 3/8 STUD DIAMETER, 7/16 BASE THREAD

COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energy and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Tech Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. High Energy and Magnum Studs are best for moderate lift and spring pressure Applications Hi-Tech Race Studs work well in all high end Applications Hi-Tech Race Studs have a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top for accurate valve adjustment. Black oxide finish. Base Thread Part # Description Diameter Length Stud Diameter Effective Stud Length 4515-16 Hi-Techâ„¢ Race Rocker Stud 7/16" .710" 3/8" 1.895"

With a 7/16" base thread and a 3/8" rocker thread, the Hi-Tech stud features rolled threads for maximum contact and a ground-flat top for accurate valve adjustment. This stud set has a 1.895" effective stud length with a .710" long base.

COMP CAMS HI-TECH ROCKER ARM STUD SET OF 16, 3/8 STUD DIAMETER, 7/16 BASE THREAD

Hi-Tech Rocker Stud Set w/ 7/16" Base Thread and 3/8" Rocker Thread

Hi-Tech Studs w/ 7/16" Base 3/8" Rocker

COMP Cams Rocker Studs 3/8in Hi-Tech

Engine Rocker Arm Stud

Eng Rocker Arm Stud
