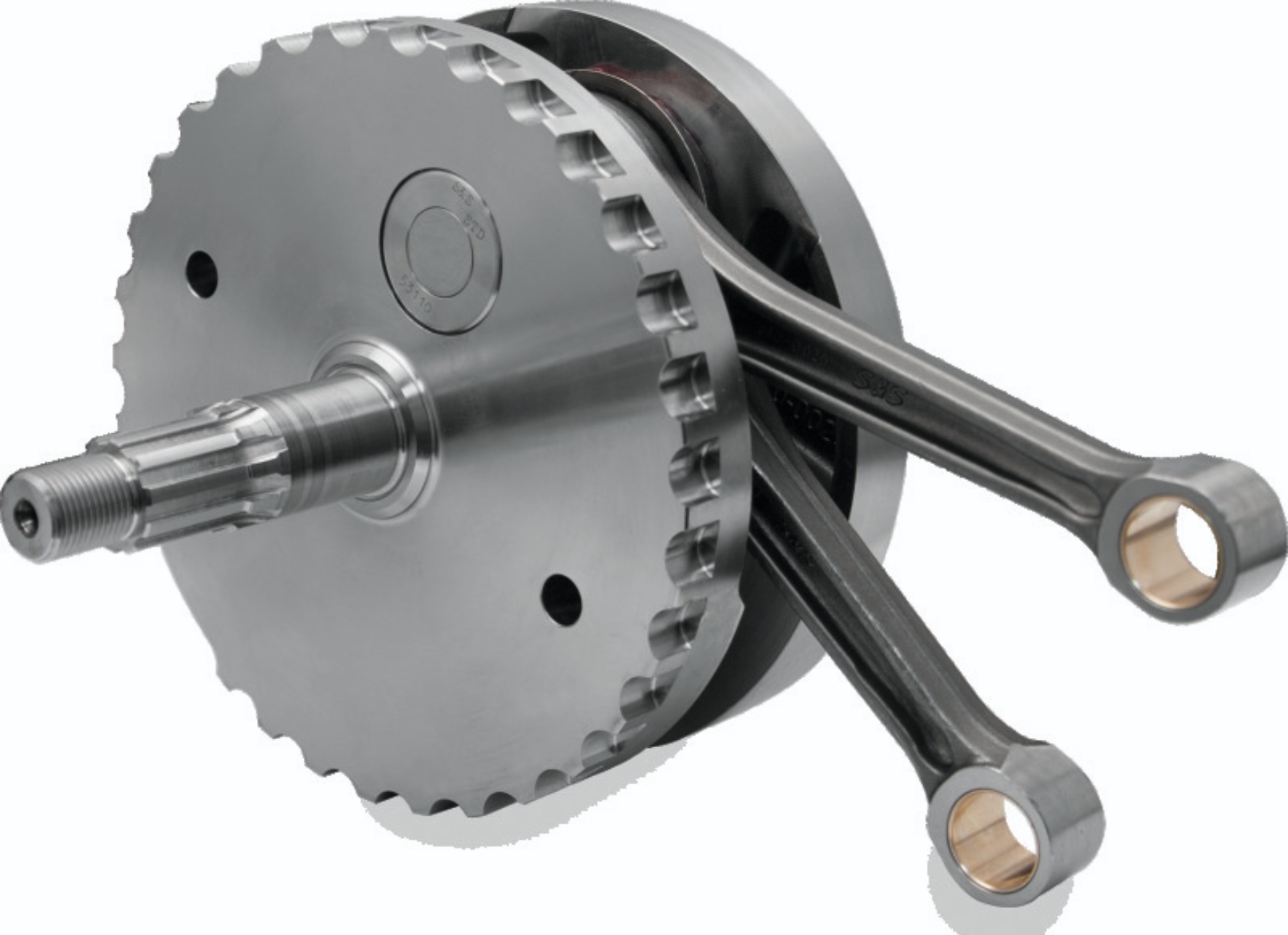

S&S Cycle SSC Flywheels - 320-0469

This 4-5/8" stroke 8-1/2" diameter flywheel assembly fits 2000-'06 internally balanced HD® big twin models as part of an S&S® 124" Hot Set Up Kit®. Sprocket shaft does not have a stock style bearing race pressed on. This flywheel assembly is for crankcases with Timken® sprocket shaft bearing. Flywheel assembly is three piece design. Pinion and sprocket shafts are forged as part of the flywheel. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.

Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114 percent stronger than late style stock steel flywheels

Fully assembled with premium quaility S&S® heavy duty 7.667" connecting rods, with full width wrist pin ends, and dynamically balanced

The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels

S&S Cycle 00-06 BT 4-5/8in Stroke Flywheel Assembly w/o Sprocket Shaft Bearing Race

Pinion shaft has sprocket to drive balancer chain

88B, S&S® 124
