ICON Vehicle Dynamics 2019-2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON Vehicle Dynamics 2019-UP Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON complete suspension systems lift your Ford Ranger while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
TECH NOTE: 2021-UP ford Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Corrosion resistant anodized shock body with 5/8? shaft (2.0 Aluminum Series shocks)
ICON shocks feature vehicle specific tune for superior performance and ride quality
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock.
Corrosion resistant CAD plated shock body with 7/8? shaft (2.5 Series shocks)
Increased lift height allows for fitment of larger and more aggressive tires
Height-adjustable coilovers provide a range of 0-3.5” of front lift height
Direct bolt-in design makes for a simple and straightforward installation
APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
FK Rod End bearings provide extended longevity and minimal deflection
2019-UP FORD RANGER 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM

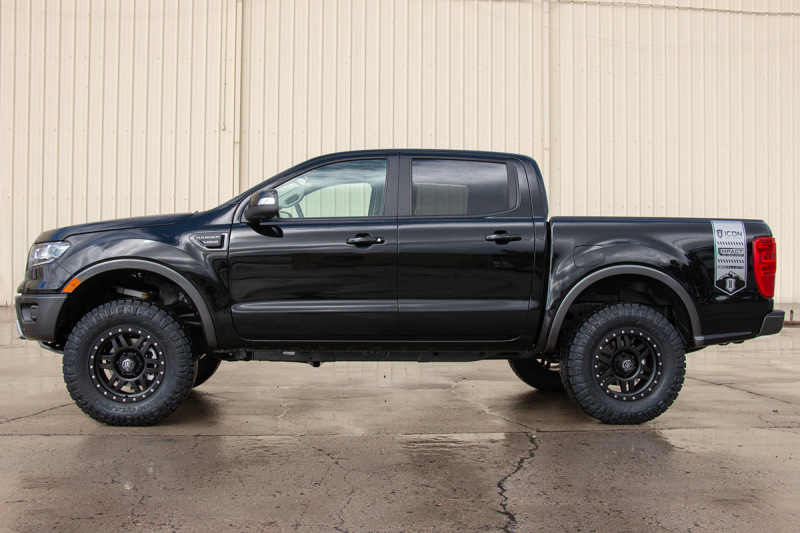

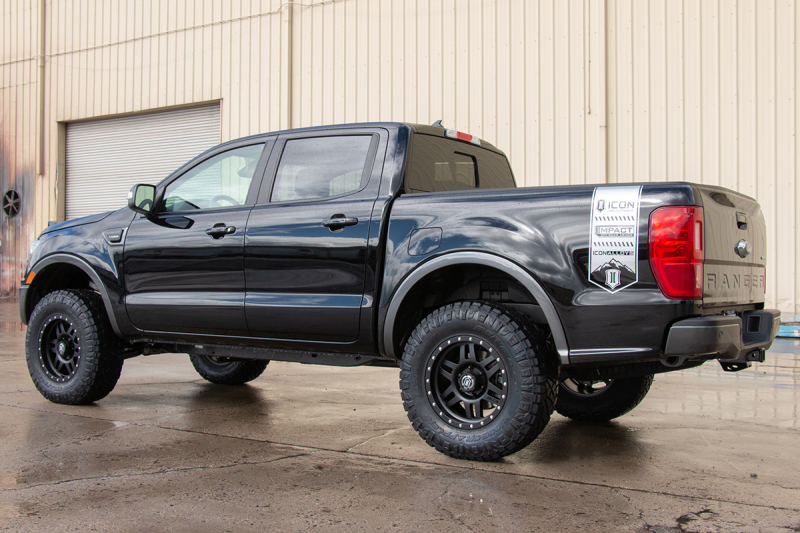

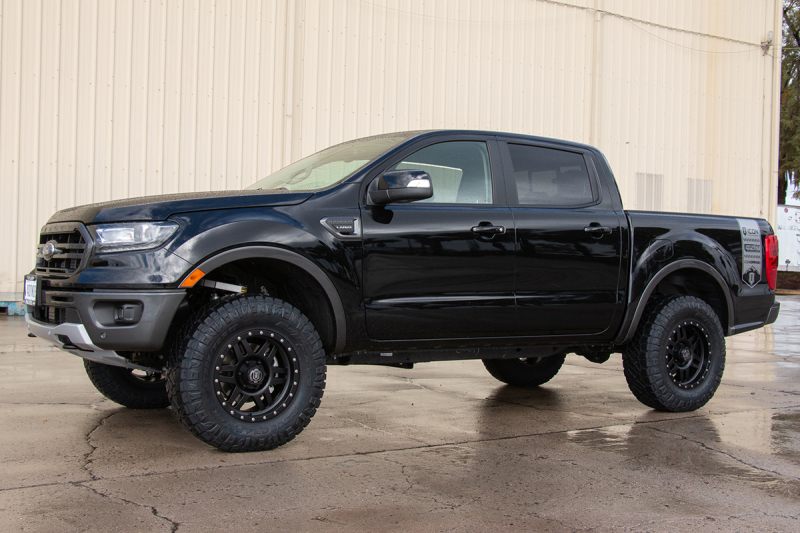

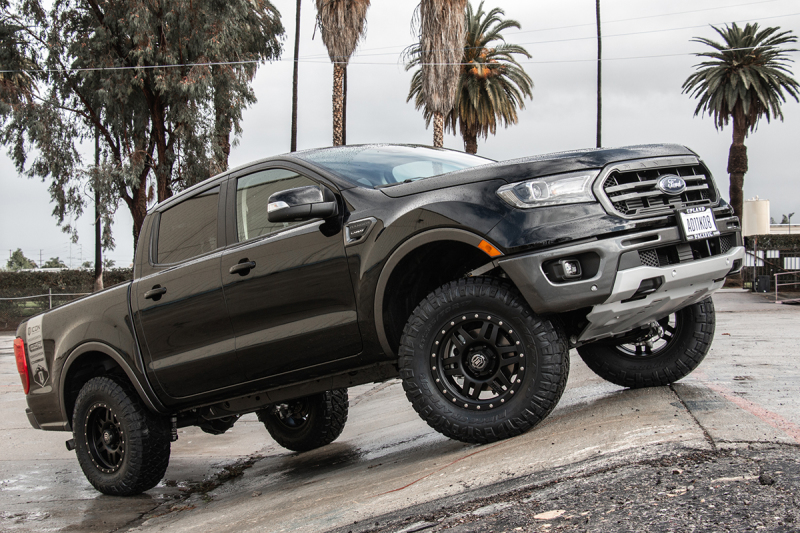

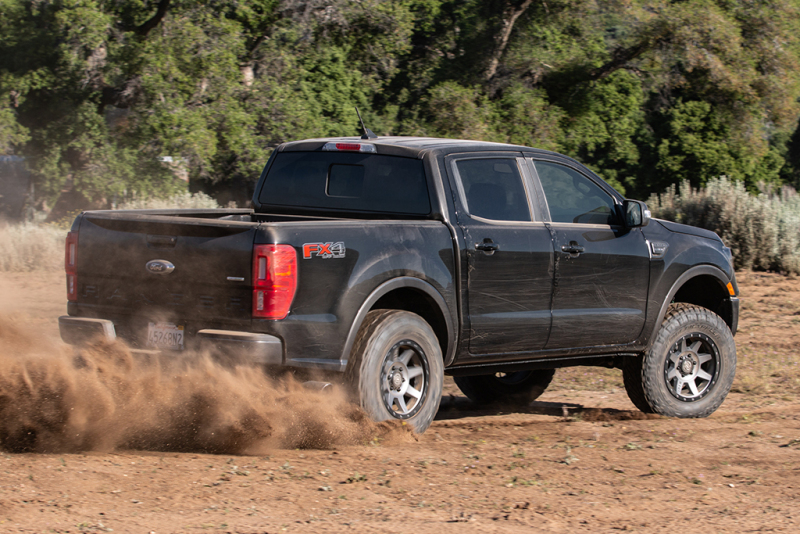

ICON 2019+ Ford Ranger 0-3.5in Stage 1 Suspension System
Up to 25% increase in front wheel travel over stock
19-UP FORD RANGER 0-3.5" STAGE 1 SUSPENSION SYSTEM
19-23 FORD RANGER 0-3.5" STAGE 1 SUSPENSION SYSTEM
TECH NOTE: Not compatible with Ranger Raptor
Shocks are fully rebuildable and revalvable
Factory Wheels & Tires Fitment: Yes
19-UP RANGER STAGE 1 SUSP SYSTEM
Fits 2WD & 4WD applications
Suspension Lift Kit
SUSPENSION SYSTEM
STG 1 SUSP SYS
K93201
