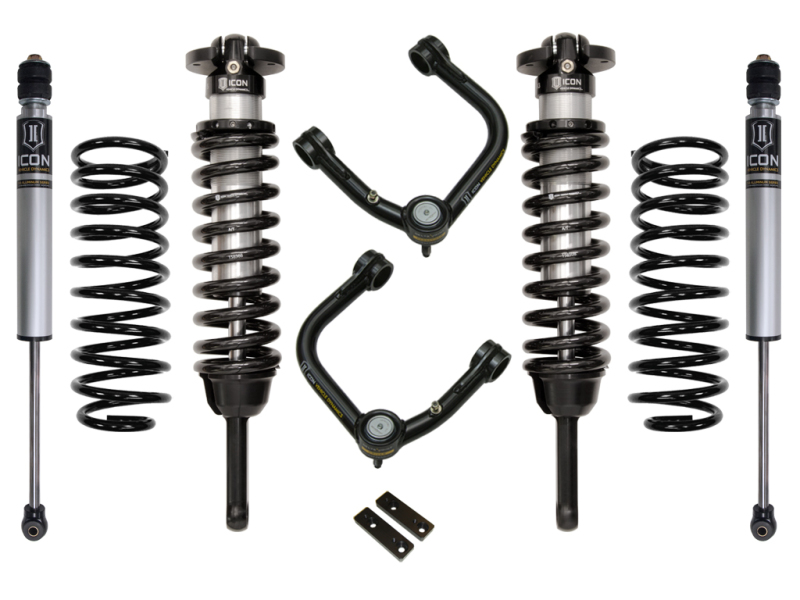

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length improves performance by increasing front wheel travel and require the addition of ICON front upper control arms. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
2003-2010 4RUNNER/2010-2014 FJ CRUISER 0-3.5" LIFT STAGE 2 SUSPENSION SYSTEM WITH TUBULAR UCA
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only.
Tubular upper control arms for added strength, durability, and improved alignment geometry
APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Extended Travel coilovers matched with ICON UCA provides increased front droop travel
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Vehicle specific tuned front and rear shocks for superior shock damping and control
ICON 2010+ Toyota FJ/4Runner 0-3.5in Stage 2 Suspension System w/Tubular Uca
10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA
2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
10-24 4RNR/10-14 FJ 0-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
APPLICATION NOTE #102: KDSS equipped require rear track bar 54200.
FK Rod End bearings for extended longevity and minimal deflection
Bolt-on system means no cutting or welding necessary for install
Adjustable coilovers provide 0-3.5" of front lift height
6061 aircraft grade aluminum CNC machined components
Increased wheel travel and ride quality over stock
4RUNNER/FJ STAGE 2 SUSP SYS TUBE UCA
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
K53062T
