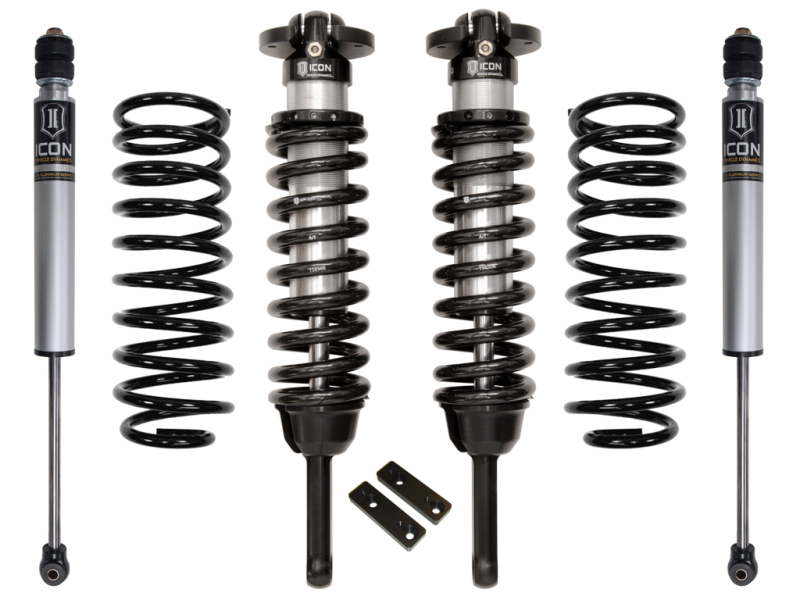

This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.
This is our entry level suspension system for the 2010-UP Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.
ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
Vehicle specific tuned front and rear shocks for superior shock damping and control
2010-2014 FJ CRUISER/2010-UP 4RUNNER 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
APPLICATION NOTE #102: KDSS EQUIPPED REQUIRE REAR TRACK BAR 54200
FK Rod End bearings for extended longevity and minimal deflection
Bolt-on system means no cutting or welding necessary for install
ICON 2010+ Toyota FJ/4Runner 0-3.5in Stage 1 Suspension System
10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 1 SUSPENSION SYSTEM
10-24 4RNR/10-14 FJ 0-3.5" STAGE 1 SUSPENSION SYSTEM
6061 aircraft grade aluminum CNC machined components
Increased wheel travel and ride quality over stock
Adjustable coilovers provide 0-3.5" of lift height
2.0 Aluminum Series rear IFP shock with 5/8" shaft
10-UP 4RUNNER/FJ 0-3.5" STAGE 1 SUSP SYS
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes
Suspension Lift Kit
SUSPENSION SYSTEM
K53061
