Dirt Logic 2.5 Resi Coilovers. From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving. Features: 2.5in OD Stainless Steel Body. 2.25in OD Billet Aluminum Piston. 7/8in NitroSteel Black Piston Rod. Cold Wound Coil Springs. Adjustable Coilover Construction. 5/8in Spherical Ball Mounting Ends. 2.50in OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose. Extended Length - E23.21. Collasped Length - C17.96. Stroke Length - S5.25 . Top Mount - TP. Bottom Mount - B1.
Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.

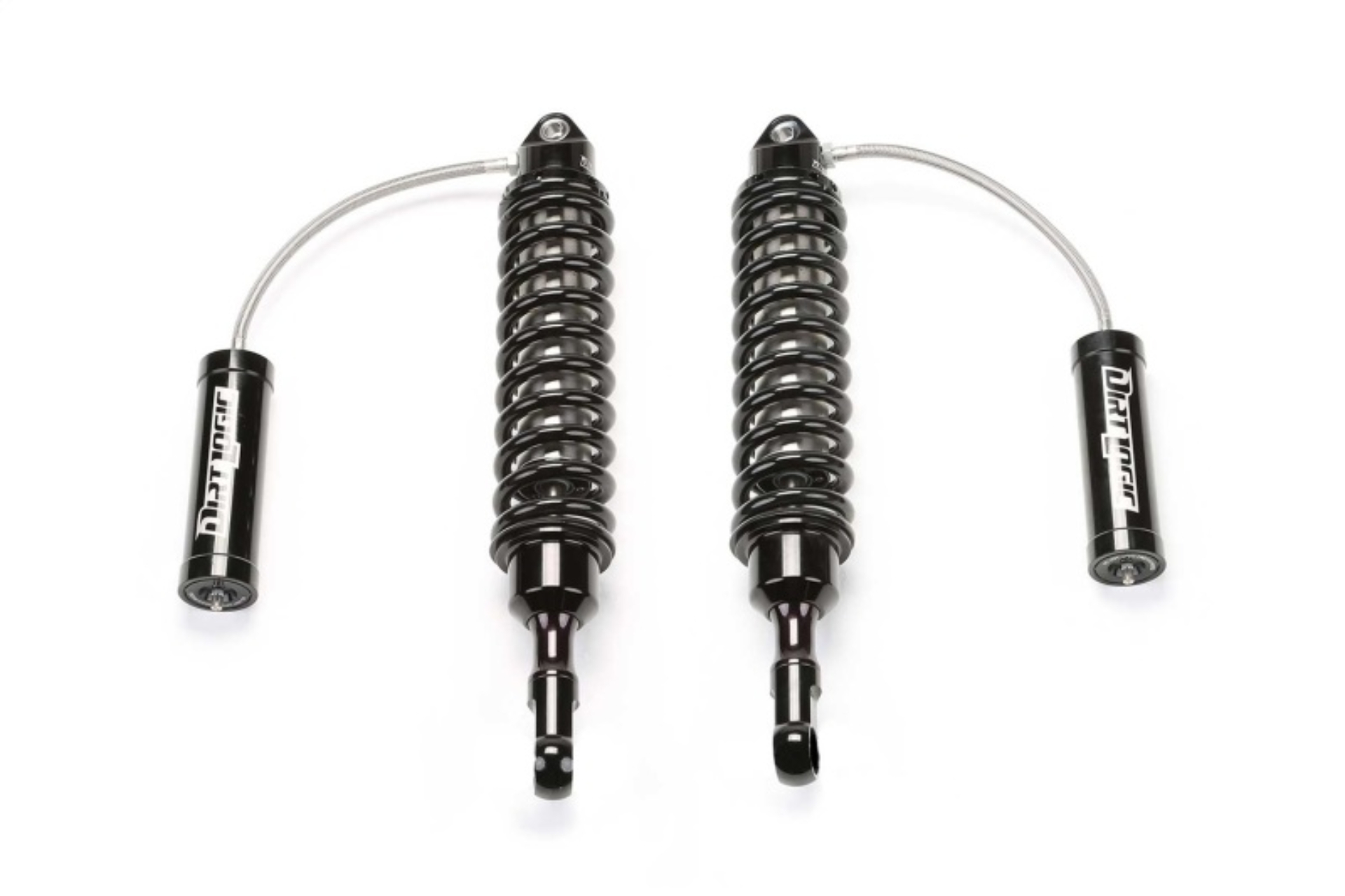

Fabtech 09-13 Ford F150 4WD 2in Front Dirt Logic 2.5 Reservoir Coilovers - Pair
Dirt Logic 2.5 Resi Coil Over Shock Absorber; For 2 in. Lift; For PN[K2197DL];
2.5DLSS C/O RESI 09F150 4WD 2" PAIR PACKAGED.
2.5DLSS C/O RESI 09F150 4WD 2" PAIR PACKAGED
Dirt Logic 2.5 Resi Coil Over Shock Absorber
Regulates Wheel Motion In Relation To Body
Shock Absorber and Coil Spring Assembly
Custom Engineered For High Quality Ride
Fabtech-2.5DLSS C/O RESI 09F
Upper Control Arm Kit
2.5DLSS C/O RESI 09F
CoilOvr
