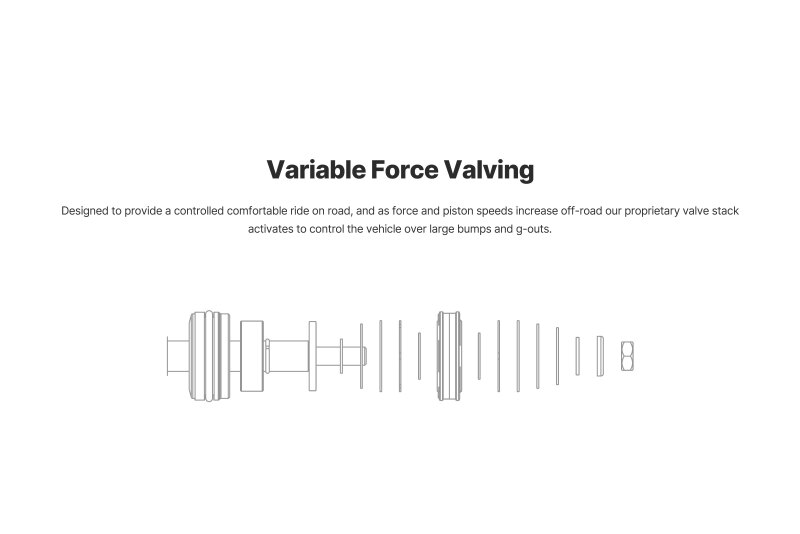

Developed utilizing our extended-travel monotube design and variable force valving, Eibach PRO-TRUCK COILOVER 2.0 delivers control during on-road transit and compliance for maximum traction on the trails.
2.7L V6 Ecoboost: Adjust lower spring perch to a preload of 115mm/4.5". Measure from the top of the bottom mount to the bottom of the spring perch.
Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
Anodized 6061-T6 Billet Aluminum Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
Pre-Assembled, Factory Direct Replacement Front Coilover - No Additional Parts Required. Sold in Pairs.
Exact lift heights may vary depending on exact packages and weight distributions of vehicle
Do not exceed the max called out lift height, poor ride quality will result.
Out of the box coil-over height is set to be level with OE rear height.
Engineered, Tested and Manufactured by Eibach in the U.S.A.
Eibach 24+ Ford Ranger Pro-Truck Coilover
Coilover Spring and Shock Assembly
Pair of Front Coilovers
Front Coilovers
