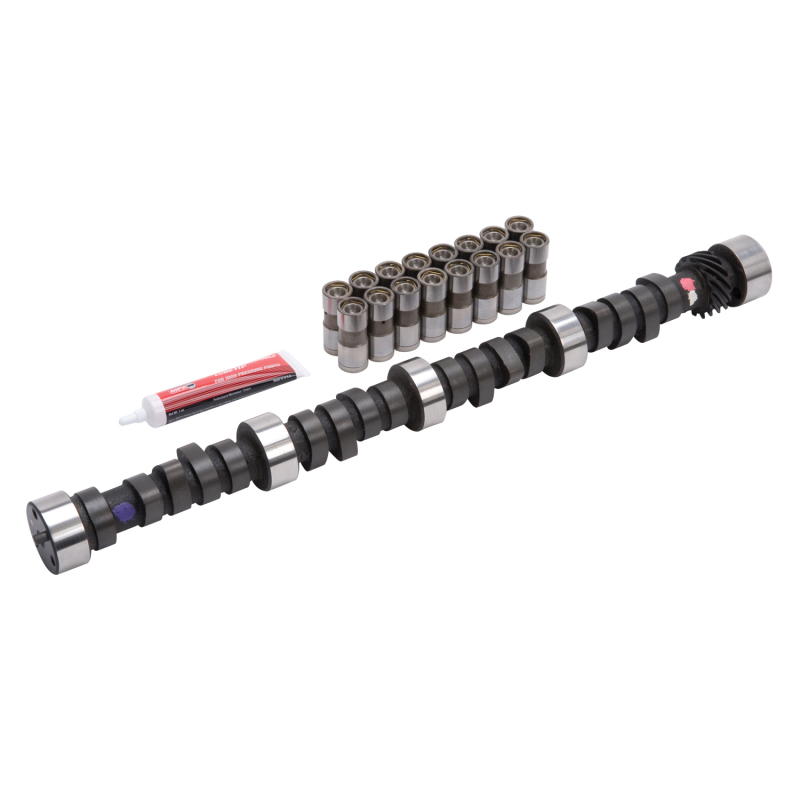

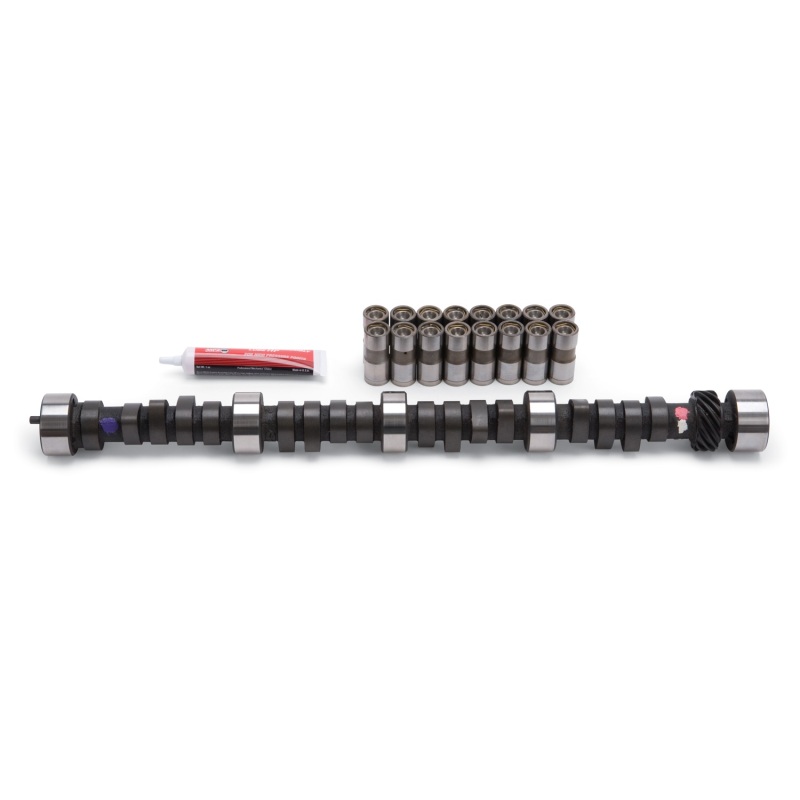

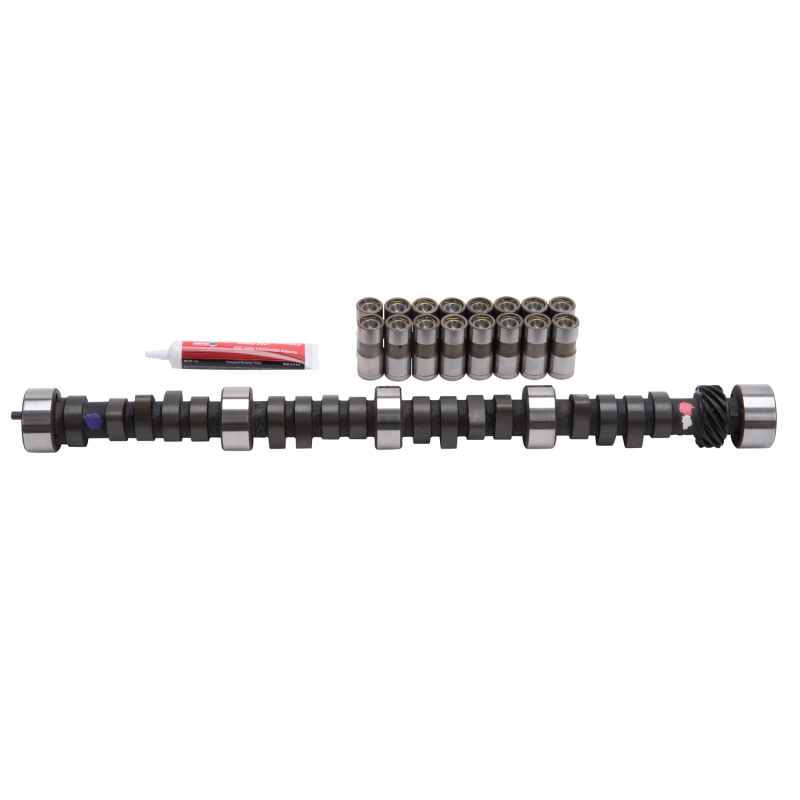

Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions. Camshaft Specifications: - Duration @ .050 Intake: 194 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .398" - Lift @ Valve Exhaust: .442" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 16"
Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions.Camshaft Specifications:- Duration @ .050 Intake: 194 degrees - Duration @ .050 Exhaust: 214 degrees- Lift @ Valve Intake: .398"- Lift @ Valve Exhaust: .442"- Lobe Separation: 112 Degrees- Intake Centerline: 107 Degrees- Idle Vacuum @ 1000 RPM's: 16"
Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine.
{ eo : 1in.; eo_carb_number : D-215-19in.; eo_carb_link : https:/ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-19.pdf }
3706; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Dual-Plane; Performer; Satin
Edelbrock Perf Plus Cam and Lifters Kit Chev 305-350 Tbi and Lg-4
Performer-Plus Camshaft Kit for 1957-86 Small-Block Chevrolet
Performer-Plus Camshaft Kit for 1976-95 Small Block Chevrolet
Performer-Plus Camshaft Kit for 1976-95 Small-Block Chevrolet
Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L)
Take the Guesswork Out of Camshaft Selection!
Edelbrock Performer-Plus Camshaft Kit
Engine Camshaft and Lifter Kit
Performer-Plus Camshaft Kit
Cam Lift kit
CAMSHAFTS
