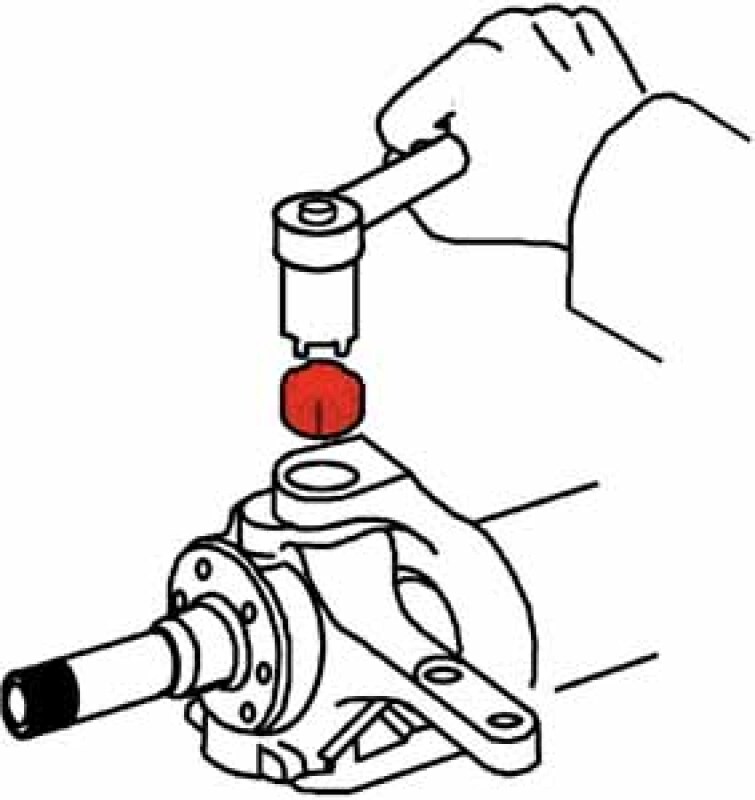

This sleeve set will change camber and/or caster from 1/8 degree to 1-1/2 degree in 1/4 degree increments. Installation requires removal of the upper ball joint stud nut. Break the taper free between the stud and sleeve. Determine the change needed and replace the existing sleeve with the correct one. #4169 spanner socket required for sleeve removal. Set includes 6 sleeves. California Residents WARNING
This sleeve set will change camber and/or caster from 1/8 degree to 1-1/2 degree in 1/4 degree increments. Installation requires removal of the upper ball joint stud nut. Break the taper free between the stud and sleeve, determine the change needed and replace the existing sleeve with the correct one. SPC 4169 spanner socket required for sleeve removal. Set includes (6) sleeves
Product appearance and features may vary in the market as design changes, improvements and modifications are implemented.
Easily adjusts camber / caster in vehicles equipped with DANA 44 or GM 10 bolt axles
Front Adjustment Range: Camber/Caster + ±.25° to ± 1.50°
Front Adjustment Range: Camber/Caster + ±.25˚ to ± 1.50˚

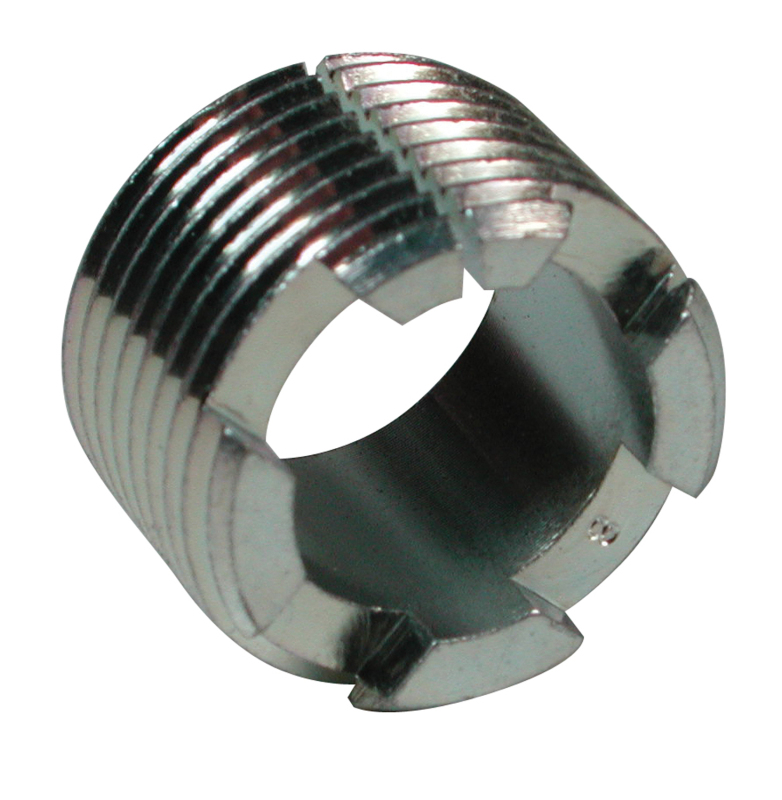

SPC Performance Camber/Caster Sleeve Assortment (6)
Kit includes an assortment of (6) sleeves
Recommended Tools: 4169 - Spanner Wrench
SPC 23000 CAM/CAS SLEEVE ASSORTMENT (6)
Alignment Caster / Camber Bushing Kit
CAM/CAST SLEEVE ASSORTMENT (6)
Required: 1 per wheel
ALIGNMENT BUSHING
23010: 1.25°
23012: 1.50°
23002: 0.25°
23004: 0.50°
23006: 0.75°
23008: 1.00°
23002: 0.25˚
23004: 0.50˚
23006: 0.75˚
23008: 1.00˚
23010: 1.25˚
23012: 1.50˚
ALIGN BUSHNG
