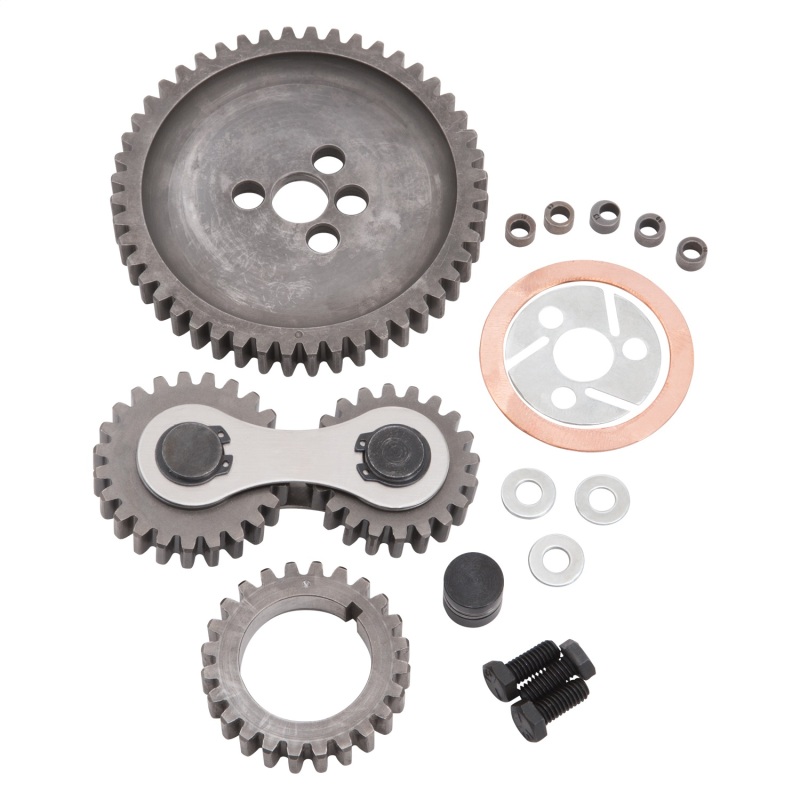

Edelbrock part #7891 Accu-Drive camshaft gear drive kit for big-block Chevy engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train. The gear drive can be easily installed. Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. Most Accu-Drives require no modifications to the engine block, although some fitting of the axles and front cover may be required. This Accu-Drive camshaft gear drive kit for big-block Chevy engines transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. A unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears, assuring absolutely equal load sharing between the crankshaft and the camshaft gears. The gears are made from billet SAE-1144 steel with induction hardened teeth. Gear teeth are shaved for precision operation. The set features hardened and ground idler pins from billet steel and are compatible with all standard camshafts. Features Include: - Accurate timing control..No chain to stretch - Provides multiple cam timing adjustments for optimum performance - Smooth cam rotation for precise valve timing
Edelbrock part #7891 Accu-Drive camshaft gear drive kit for big-block Chevy engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train. The gear drive can be easily installed. Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. Most Accu-Drives require no modifications to the engine block, although some fitting of the axles and front cover may be required. This Accu-Drive camshaft gear drive kit for big-block Chevy engines transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. A unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears, assuring absolutely equal load sharing between the crankshaft and the camshaft gears. The gears are made from billet SAE-1144 steel with induction hardened teeth. Gear teeth are shaved for precision operation. The set features hardened and ground idler pins from billet steel and are compatible with all standard camshafts.Features Include:- Accurate timing control..No chain to stretch- Provides multiple cam timing adjustments for optimum performance- Smooth cam rotation for precise valve timing
Edelbrock part #7891 Accu-Drive camshaft gear drive kit for big-block Chevy engines replaces a stock timing chain with a precision gear drive system utilizing a compound gear drive train.
Edelbrock; Accu-Drive Gear Drive; Gear Drive; Pontiac; 7895
Chevrolet:Big-Block Mark IV:396 (6.5L)-454 (7.4L)
Edelbrock Accu-Drive Gear Drive B/B Chevy
ACCU-DRIVE CAMSHAFT GEAR DRIVE B/B CHEVY
Compatible With All Standard Camshafts
Accu-Drive Gear Drive Big-Block Chevy
Accu-Drive Camshaft Gear Drive
Engine Timing Camshaft Gear
Accu-Drive Gear Drive BBC
TIMING CHAINS
{ eo : 6in.}
Gear Drive
